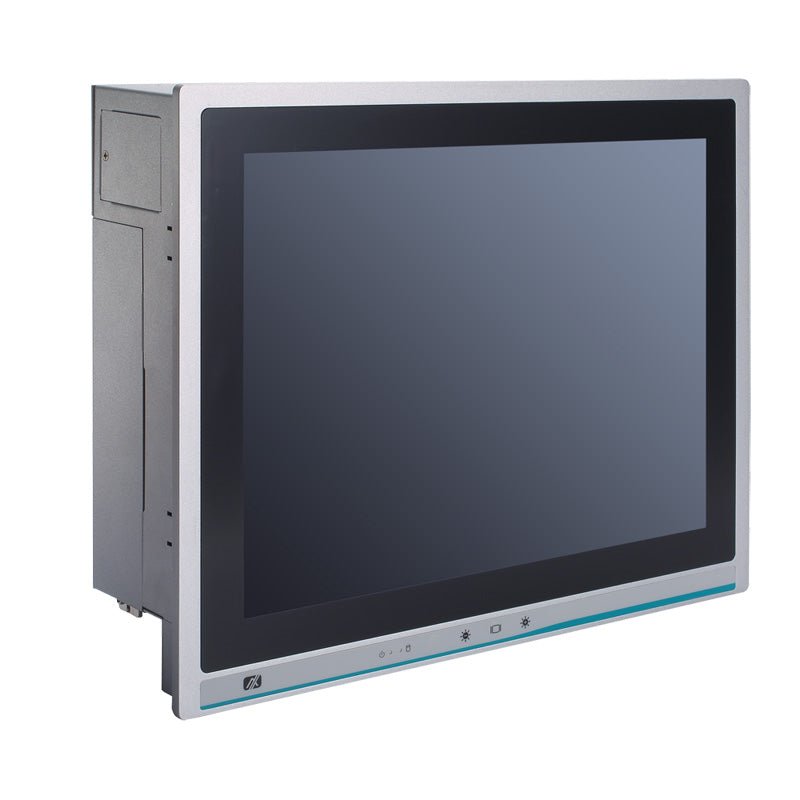

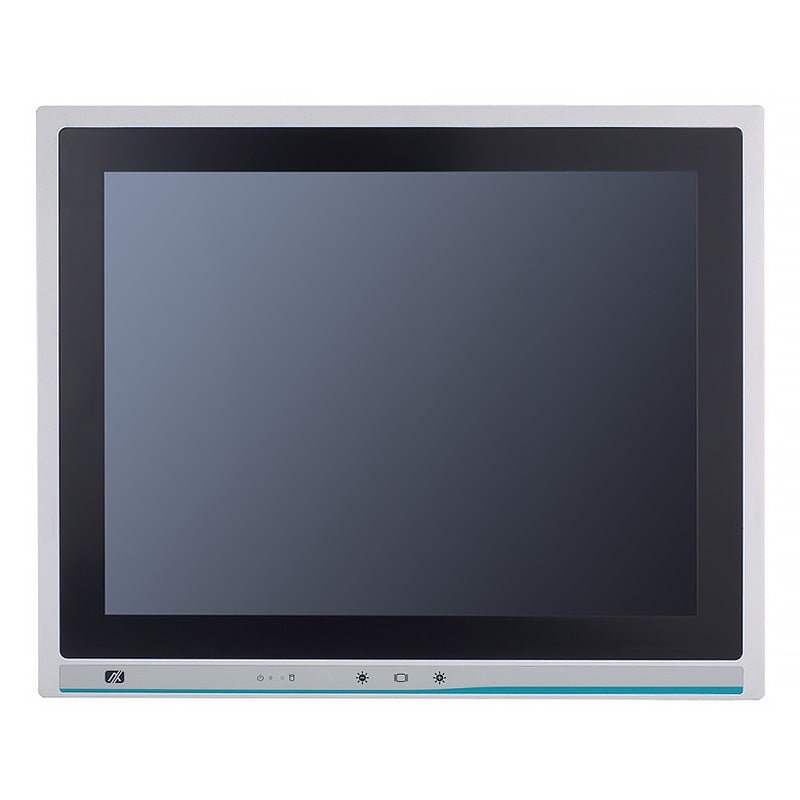

17 inch Industrial Touch Panel PC P117-ADL-TRA

• 17" SXGA LCD with 250 nits of brightness
• 5-wire resistive touch
• Supports one 2.5" SATA HDD/SSD
• HDMI, DisplayPort, and VGA outputs available for 2nd display
• 1 flexible I/O window
• Supports WLAN module and antenna (optional)
• Supports 2 USB 3.2, 4 USB 2.0, and 4 COM
• TPM 2.0 onboard
• Supports panel, VESA, and wall mount kits

Axiomtek's P117-ADL-TRAdesigned for demanding applications in multimedia kiosks, heavy-duty industries, and factory automation. Powered by scalable 13th/12th Gen Intel® Core™ i7/i5/i3 or Pentium® processors with the Intel® H610 chipset, this rugged panel PC delivers outstanding performance and flexibility. Its 17-inch XGA TFT LCD display with a 5-wire resistive touchscreen and 250 nits of brightness provides clear visuals and an enhanced user experience. Equipped with a PCIe x16 slot, this all-in-one solution supports AI accelerator, vision, motion, and various add-on I/O cards, providing enhanced connectivity and versatile functionality. Built for durability in harsh environments, this IP65-rated HMI can be confidently deployed in challenging industrial conditions to effectively support critical operations.

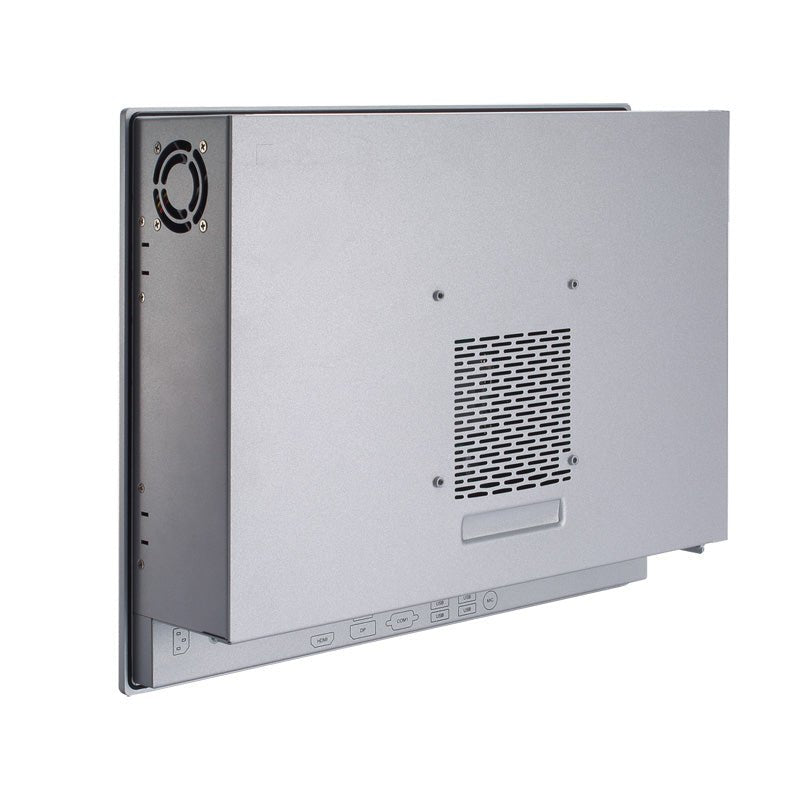

Axiomtek's P117-ADL-TRA is designed for easy maintenance, featuring a convenient two-screw back chassis that allows quick access and reduces downtime during servicing. Additionally, this robust all-in-one panel computer adopts an IP65-rated front bezel, ensuring robustness against water and dust in harsh environments, said Zoey Chang, a product manager of the Product PM Division at Axiomtek. It also has one PCIe x16 slot for integration with various add-on cards. This flexibility enables users to customize the system with additional graphics cards, network interface cards, or specialized I/O cards, catering to specific application needs and future upgrades.

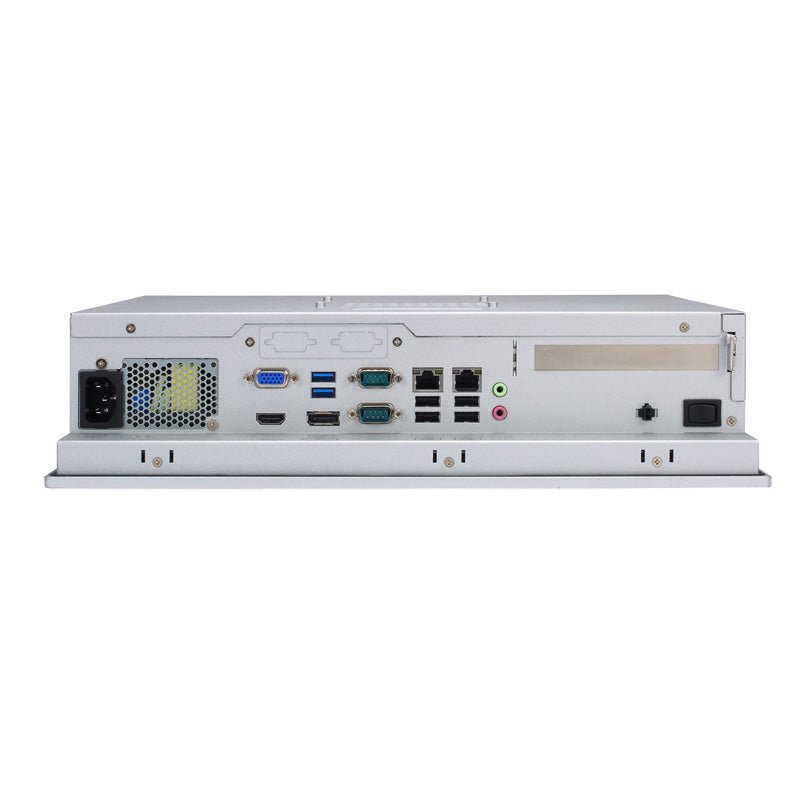

Axiomtek's P117-ADL-TRA is equipped with dual 260-pin DDR4-3200/2666/2400 SO-DIMM slots, supporting up to 64GB of system memory. For versatile storage needs, it offers a 2.5” SATA HDD/SATA slot (available upon request). The panel PC includes a wide range of I/O interfaces, such as two USB 3.2 Gen1 ports, four USB 2.0 ports, one RS-232 port, one RS-232/422/485 port, one GbE LAN port (Intel® I219-V), one 2.5GbE LAN port, one audio (Mic-in/Line-out), and a remote power switch. Ideal for multimedia applications, Axiomtek's P117-ADL-TRA delivers seamless display capabilities with one VGA, one HDMI, and one DisplayPort. Additionally, it features a flexible I/O window for optional configurations and supports an optional WLAN module and antenna for wireless connectivity.

Axiomtek's P117-ADL-TRA has a wide operating temperature range of 0°C to +45°C. To ensure this Intel® Core™-based touch panel PC can be integrated into different settings, it can be mounted using a panel, VESA, or wall mount kit. It supports various operating systems including Windows® 11 and Windows® 11 IoT.
