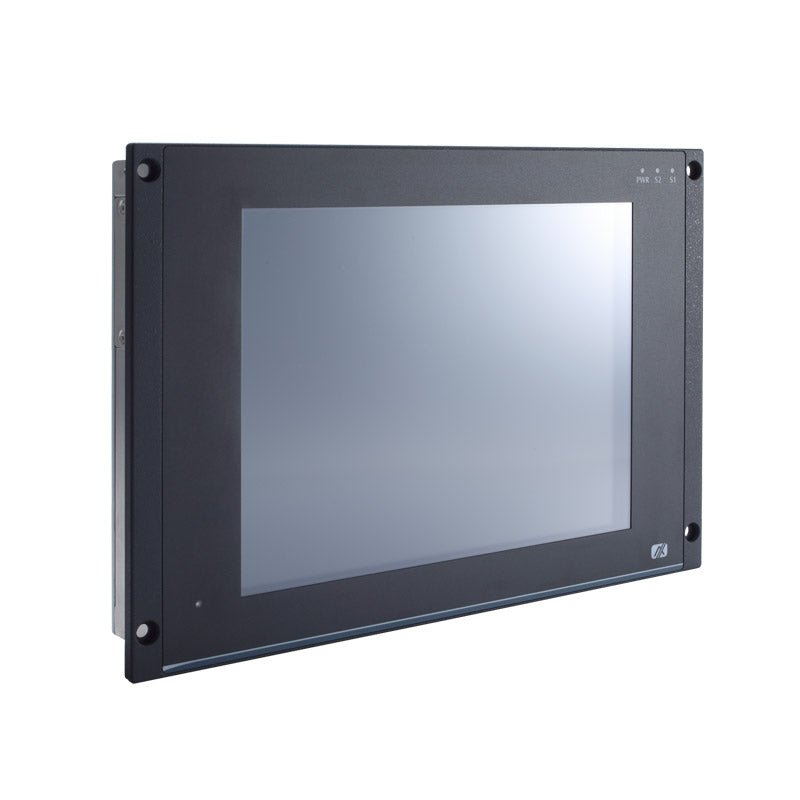

12.1 inch Railway Touch Panel PC GOT712S

• Sunlight readable 12.1" XGA TFT LCD with 800 nits of high brightness
• Fanless with Intel Atom® processor E3845 1.91 GHz
• All lockable connector design
• Auto-dimming for different environments
• -40°C to +70°C wide temperature range
• Typical 24 to 110 VDC wide power input range, EN 50155
• Class S3 20ms power interruption protection
• EN 50155, EN 45545-2 certified for railway application

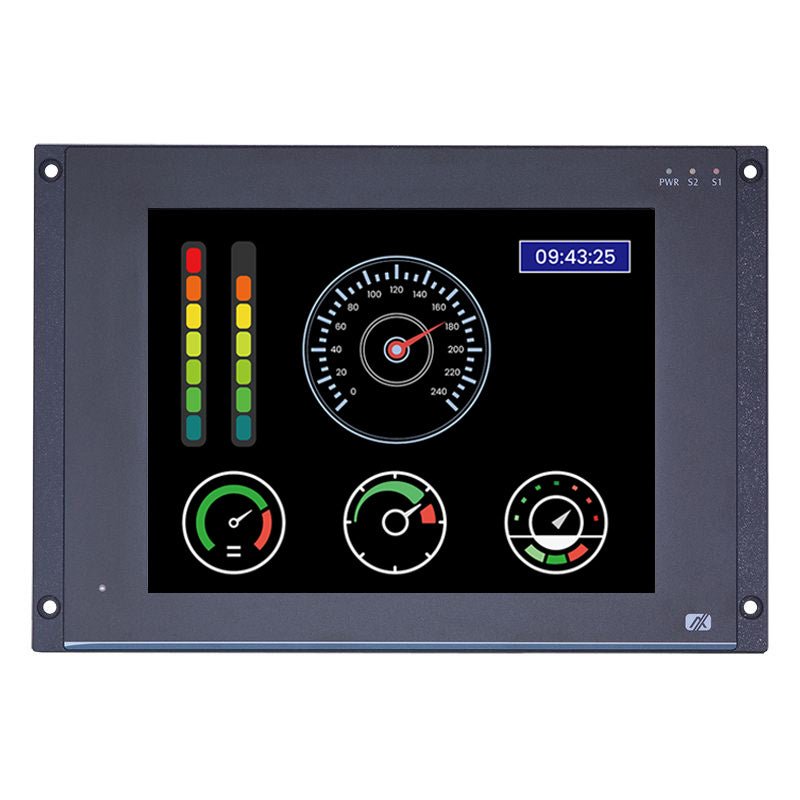

Axiomtek's GOT712S is a EN 50155 and EN 45545-2 certified 12.1-inch fanless touch panel PCs for train control and rail signaling. Featuring sunlight-readable technology and auto-dimming function, Axiomtek's GOT712S-837 are readable even under intense sunlight and in dark environments. Axiomtek's GOT712S transportation-certified panel PCs have an IP65-rated aluminum front bezel for dust-proof plus water-resistant; furthermore, they have a full range DC power input from 24 to 110 VDC and an extended operating temperature range from -40°C to +70°C. For safety concerns, they also can endure a 20ms power interruption (EN 50155 Class S3) from an unexpected power outage. Axiomtek's GOT712S-837 are specifically designed to serve the complex needs of the railway industry and operate reliably under extreme conditions such as major temperature fluctuations and vibration.

Axiomtek's  GOT712S-837 are powered by the quad-core Intel® Atom™ processor E3845 (codename: (Bay Trail). Axiomtek's GOT710S-837 has a 10.4-inch SVGA TFT LCD display with a resistive touchscreen and 1000 nits of brightness.  Axiomtek's GOT712S-837 is equipped with a 12.1-inch XGA TFT LCD display with 1024 x 768 resolution and 800 nits of brightness. In addition, both panel PCs have a 4GB onboard DDR3L memory, as well as 16 GB onboard flash and one mSATA port for extensive storage.

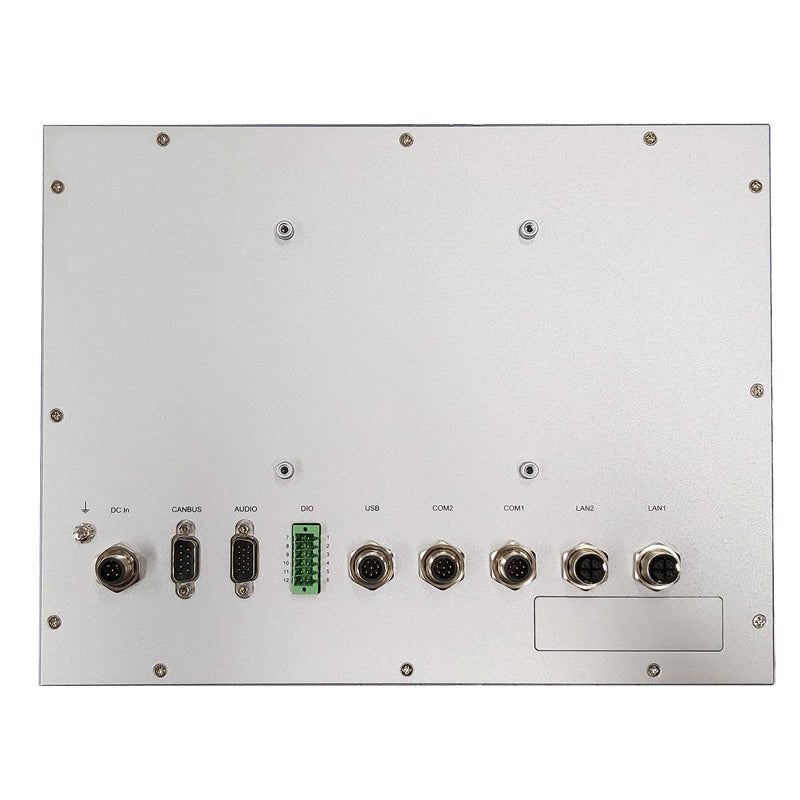

Axiomtek's GOT712S-837 support a variety of transportation communication protocols to serve the complex needs of the railway industry including two isolated M12 A-coded RS-232/422/485 ports, two isolated M12 X-coded GbE LAN ports, one M12 A-coded USB 2.0 port, one M12 A-coded DC-in, one DB15 audio (line-in/out), one isolated terminal block DIO (6-in/2-out) port and one isolated DB9 CANbus port. For flexible communication, they reserve two PCI Express Mini Card slots for wireless connectivity. Moreover, both panel PCs offer flexible mounting options including wall mounting, VESA mounting and suspension mounting. Windows® 10, 8 and 7 operating systems are also available.
