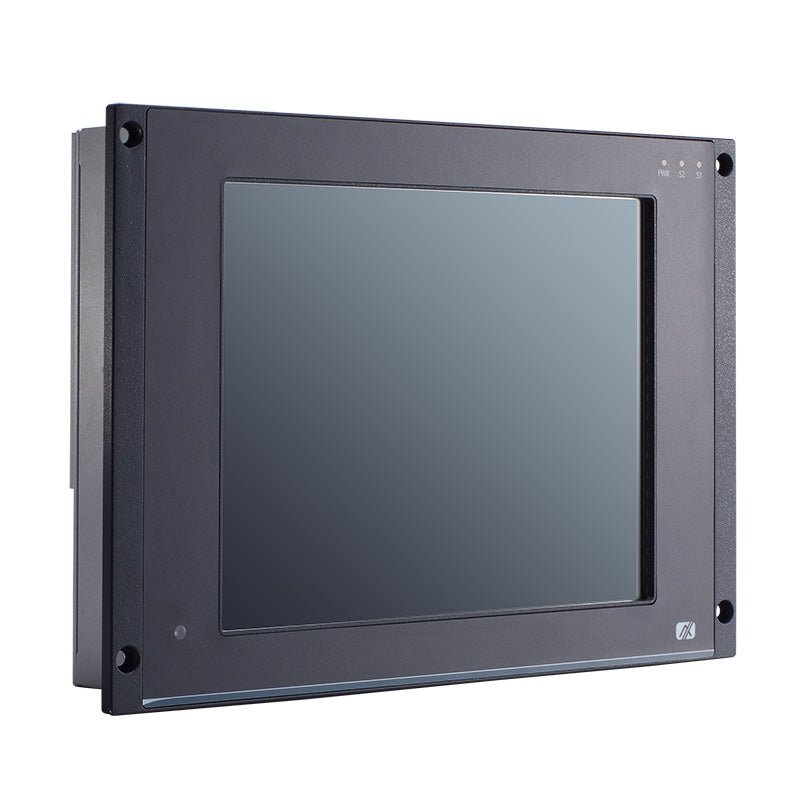

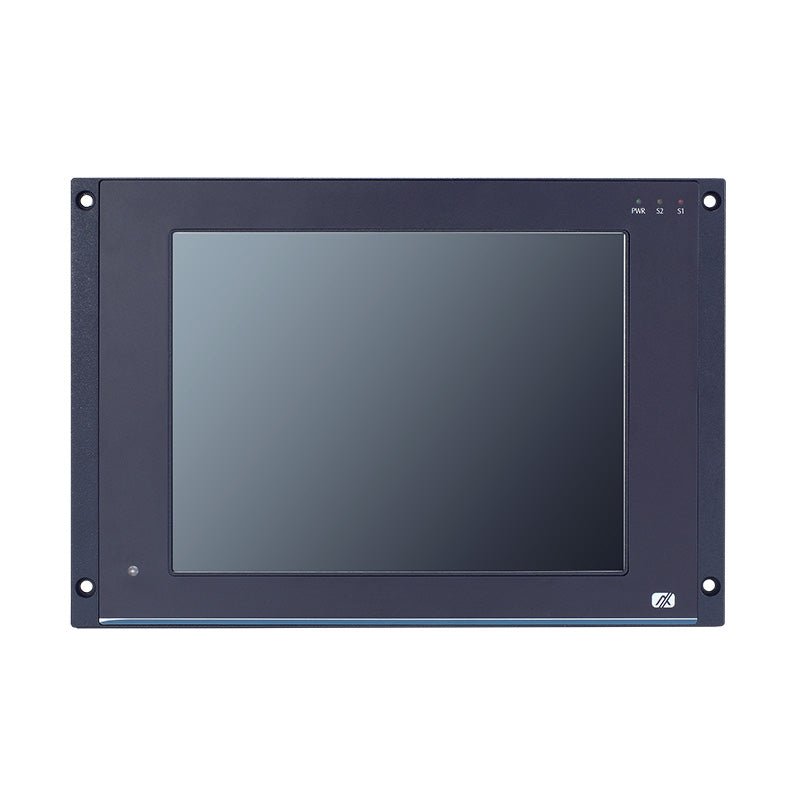

10.4 inch Railway Touch Panel PC GOT710A

• Sunlight readable 10.4" XGA TFT LCD
• Intel Atom® processor x6425E, 12W (Elkart Lake)

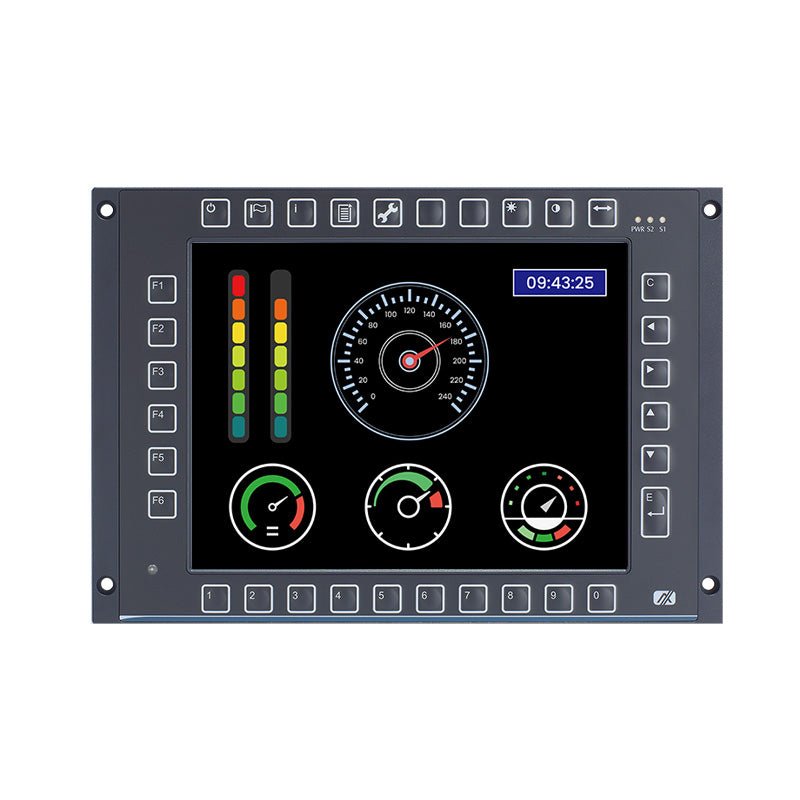

• Alternative keypad control on the front bezel
• M12-type lockable connectors design
• Auto-dimming for different environments
• -40°C to +70°C wide temperature range (EN 50155 OT4)
• Typical 24 to 110 VDC wide power input range, EN 50155 Class S3 20ms power interruption protection
• EN 50155 and EN 45545-2 certified for railway applications

Axiomtek's GOT710A is a 10.4" XGA TFT LCD railway panel PC powered by the Intel Atom® x6425E processor. Built to endure the rigorous demands of railway environments, this rugged railway panel PC is certified to meet EN 50155 and EN 45545-2 standards, ensuring reliable performance even in challenging conditions. Axiomtek's GOT710A supports a wide 24-110 VDC power input range, is compliant with EN 50155 S3 standards, and operates seamlessly across extreme temperatures from -40°C to +70°C (EN 50155 OT4). With its I/O expansion window, Axiomtek's GOT710A offers flexibility to meet diverse user needs, making it an ideal solution for human-machine interface (HMI) applications in the railway industry.

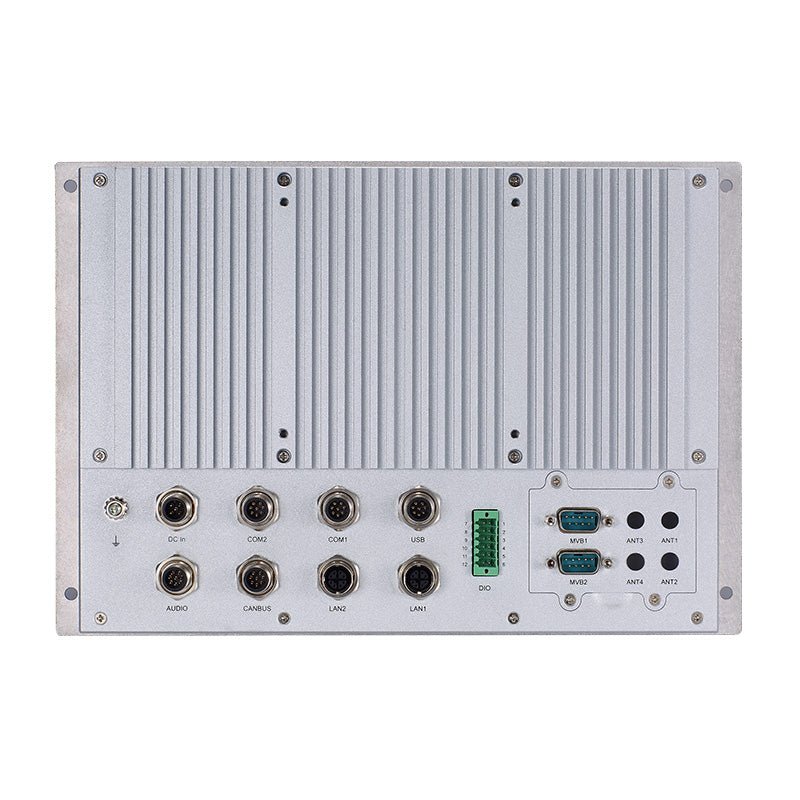

Axiomtek's GOT710A has a 10.4-inch XGA TFT LCD display with a projected capacitive touch and 500 nits of brightness. It features alternative keypads on the front bezel, compliant with UIC-612-01 standards, offering convenient operation and easy cleaning. Axiomtek's GOT710A supports one 260-pin DDR4-3200 SO-DIMM slot with up to 32GB of system memory and one M.2 Key B 2242 SSD for expansive storage. For expansion, it includes one full-size PCIe Mini Card slot (supporting USB/PCIe/SIM), one full-size Mini Card slot (supporting PCIe/USB/mSATA), and an M.2 Key A + E 2230 slot. The ruggedized panel PC features a comprehensive range of M12-coded I/O connectors, including dual RS-232/422/485, dual GbE LAN, USB 2.0, and CAN bus interfaces, delivering robust connectivity options tailored for diverse railway applications.

Axiomtek's GOT710A's flexibility is further enhanced by its innovative I/O expansion window, enabling seamless customization to meet specific user requirements. This feature is particularly beneficial for applications that demand quick adjustments or unique interfaces, such as integration with a Multifunction Vehicle Bus (MVB). Moreover, the railway panel PC offers flexible mounting options including wall mounting and VESA mounting. Windows® 11 and Linux operating systems are also available.
