10.1 inch Touch Panel PC GOT110A-TWL

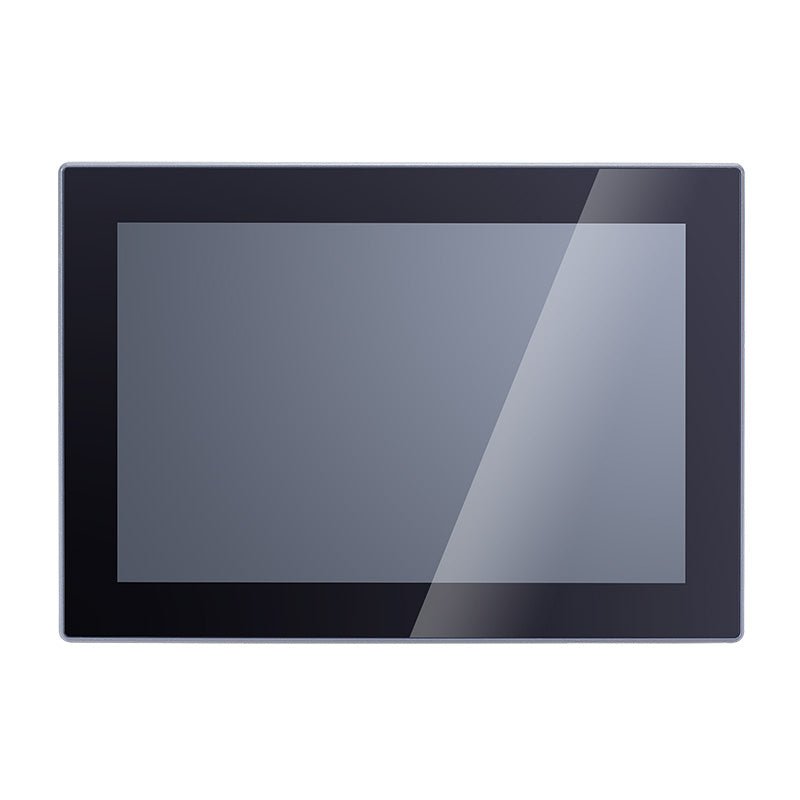

• 10.1" WXGA TFT LCD, 350 nits with LED backlight, PCAP
• Fanless design with Intel® N-series N150 (Twin Lake), onboard 8GB LPDDR5 memory

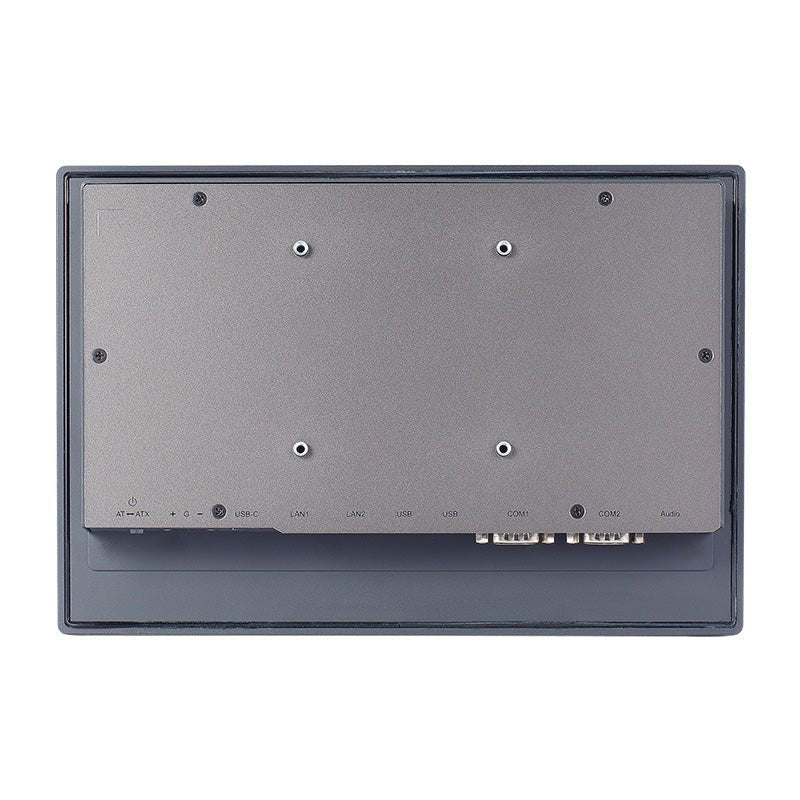

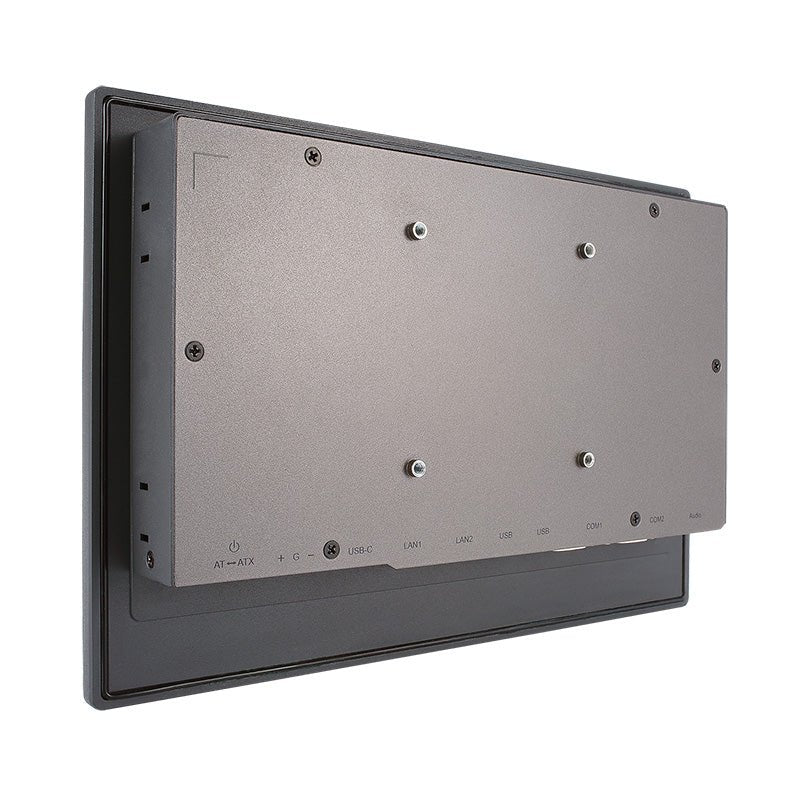

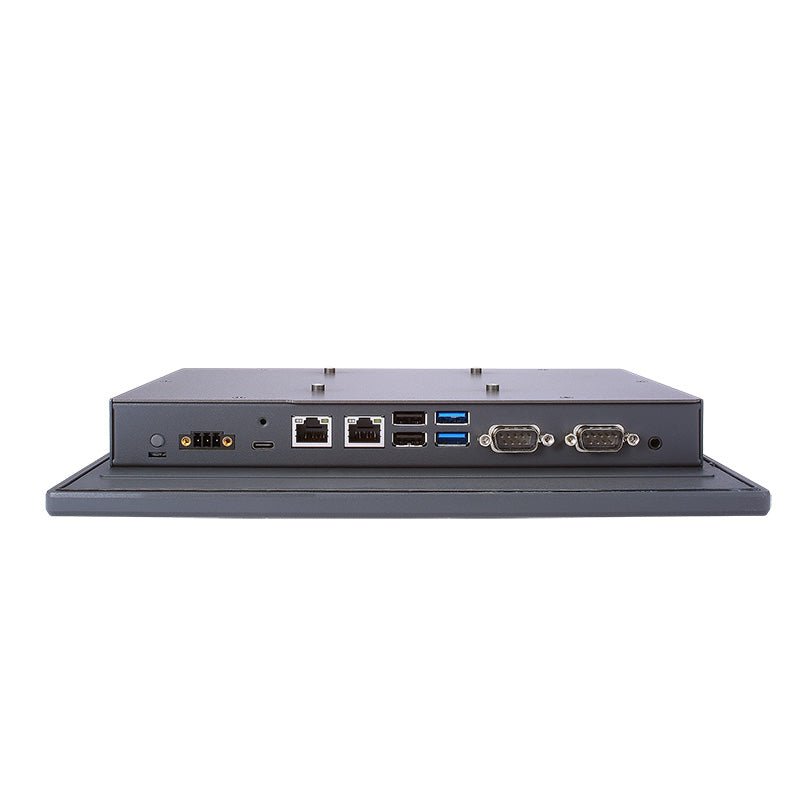

• 2 LAN, 4 USB, 1 USB Type C, 2 COM, and 1 Line-out
• Front bezel IP65 & rear cover IP30
• AT/ATX mode selectable via hardware switch
• Supports M.2 2242/2280 M-key (PCIe Gen 3 x2 NVMe), mSATA, and Wi-Fi (6E/7) or 4G LTE
• Operating temperature: -10°C to +50°C
• Supports panel mount, wall mount, VESA, and desktop stand

Axiomtek's new GOT100A series is powered by the Intel® Processor N150 (Twin Lake) and built with a rugged, low-power design. Built for long-term deployment in demanding environments, Axiomtek's GOT100A series combines a fanless architecture, rugged mechanical design, and a highly integrated USB-C interface to simplify system integration while ensuring stable 24/7 operation. Axiomtek's GOT100A series delivers reliable, always-on operation for industrial HMI, automation, and smart logistics applications.

Axiomtek's GOT100A series is equipped with the Intel® Processor N150 quad-core SoC, paired with onboard LPDDR5 memory up to 16GB. This platform delivers responsive computing performance while maintaining low power consumption, making it ideal for continuous industrial operation. The fanless design eliminates moving parts, reducing mechanical failure risks and extending product lifespan, which helps lower the total cost of ownership.

Designed for harsh industrial environments, Axiomtek's GOT100A series delivers reliable performance with an IP65-rated front bezel and IP30-rated rear cover, providing effective protection against dust and water exposure. Built to endure demanding conditions, the systems comply with MIL-STD-810H shock and vibration standards, ensuring stable operation across factory floors, warehouses, and other challenging industrial applications.

To meet the stringent requirements of modern industrial installations, Axiomtek's GOT100A series also complies with CE EMC standards for heavy industrial environments, including IEC/EN 61000-6-2 (Immunity) and IEC/EN 61000-6-4 (Emission). Featuring a wide-range 9-36VDC power input and an operating temperature range of -10°C to +50°C, the GOT100A series supports flexible deployment while maintaining long-term reliability across diverse industrial infrastructures.

Axiomtek's GOT100A series has versatile USB-C interface, supporting PCIe Gen 2 x1, USB 10Gbps, DisplayPort 1.4, and 5V/3A power output. This single interface enables display output, high-speed data transfer, and power delivery, significantly simplifying cable and system architecture while accelerating installation and deployment. In addition, the system’s Universal Serial Bus connectors comply with USB 3.2 standards and feature an intelligent power control function.

Axiomtek's GOT100A series is well-suited for light industrial HMI and machine operation panels, industrial automation and equipment control systems, and smart logistics and warehouse management platforms, where reliability, ease of integration, and long-term availability are critical. By combining the energy-efficient Intel® N150 SoC with LPDDR5 memory, Axiomtek's GOT100A series significantly reduces overall system power consumption, helping lower energy use and associated carbon emissions while supporting sustainable industrial operations.
