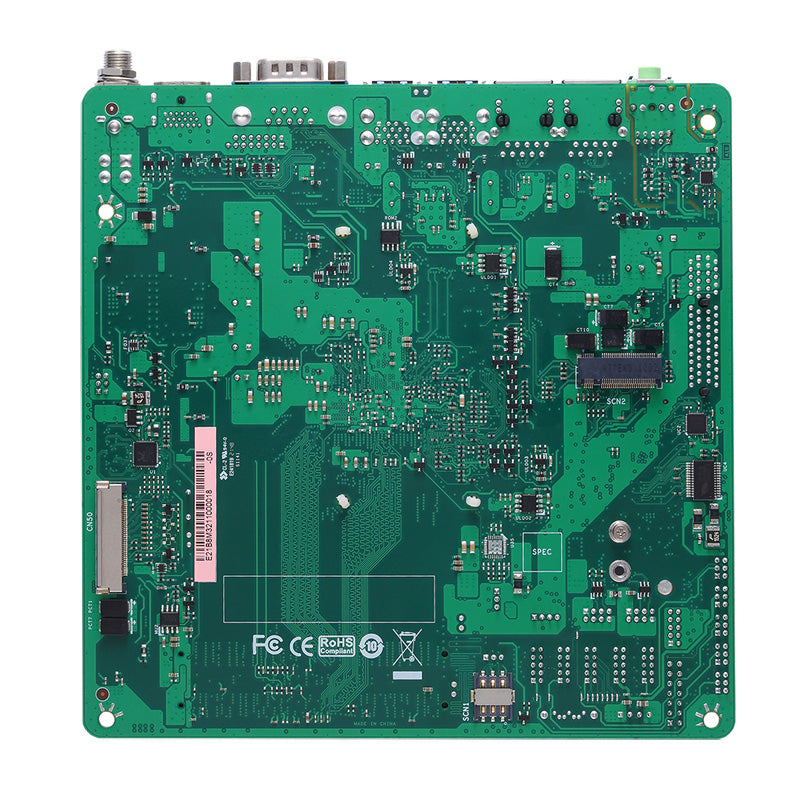

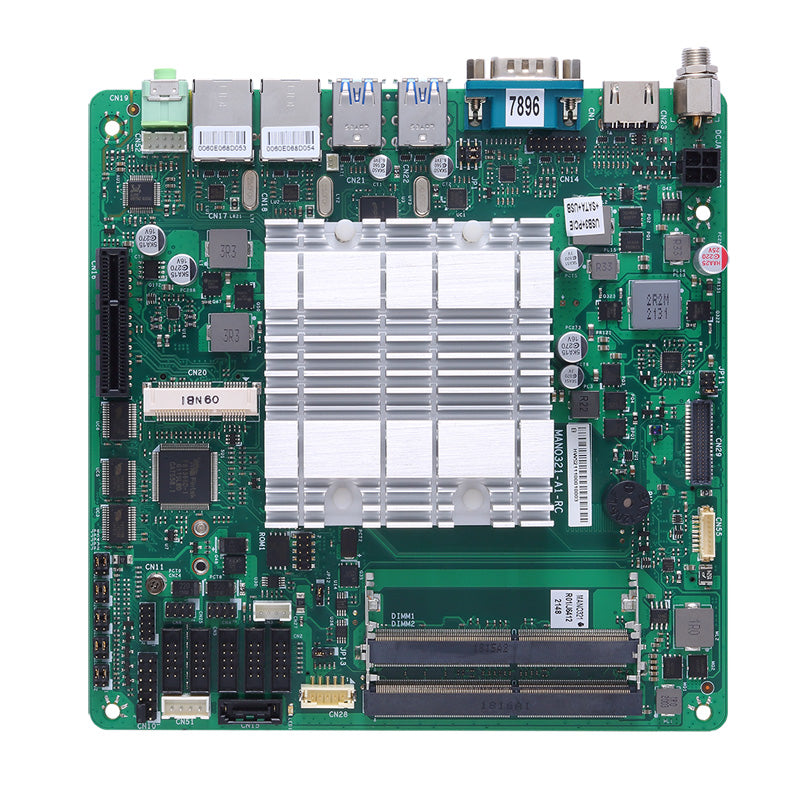

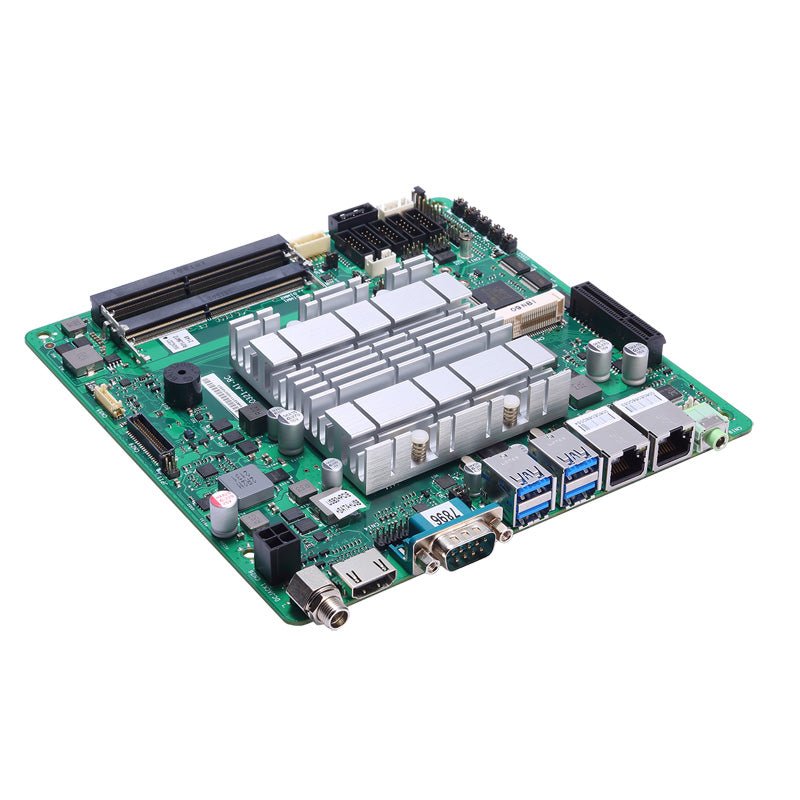

Mini ITX Motherboard MANO321

- Intel® Celeron® processor J6412
- 2 DDR4 SO-DIMM for up to 32GB of memory
- 1 PCIe x2 for PCIe x4 expansion slot
- 1 PCI Express Mini Card slot and PCIe x1
- 4 USB 3.1 and 4 USB 2.0
- 1 SATA-600 and 1 M.2 Key B
- Supports 6 COM
- Low profile
- 9 to 20 VDC power in
- HDMI/VGA/LVDS with triple view supported

Axiomtek MANO321 is a fanless, low-profile mini-ITX motherboard with 5G capability that can be a flexible piece to develop IoT environments. Powered by low power consumption Intel® Celeron® processor J6412 (codename: Elkhart Lake); two 260-pin DDR4-3200/2666/2400 SO-DIMM slots for up to 32G of system memory. Its low-profile design lowers the height of the board by half of the standard Mini-ITX form factor, making it versatile for IoT applications. To enable 5G connection, it has a SIM card slot and an M.2 Key B slot with USB 3.1 interface, which allows adding a 3042/3052 5G module to gain the connection. For display-related applications, the MANO321 supports triple-view with one HDMI 1.4b, one VGA, and one LVDS. Besides, it has HD Codec audio. In terms of expansion interfaces, the industrial motherboard provides one PCI Express Mini Card slot and one PCIe x4 slot with PCIe x2 signal.

MANO321 features rich I/O options including one SATA600 connector, two Gigabit Ethernet with support of Wake-on-LAN and Boot ROM, four USB 3.1, four USB 2.0, six COM, 8-CH DIO, HDMI, VGA, LVDS, and one SMBus pin header, which make the board ready for the industrial environment. If users require more storage space, it also provides one mSATA and one SDHX slot. The M.2 Key B slot can also be compatible with SATA interface for 2242 SSD. It also supports Linux and Windows operating systems. Additionally, the MANO321 supports Trusted Platform Module (TPM) 2.0 and a watchdog timer for optimal security.
