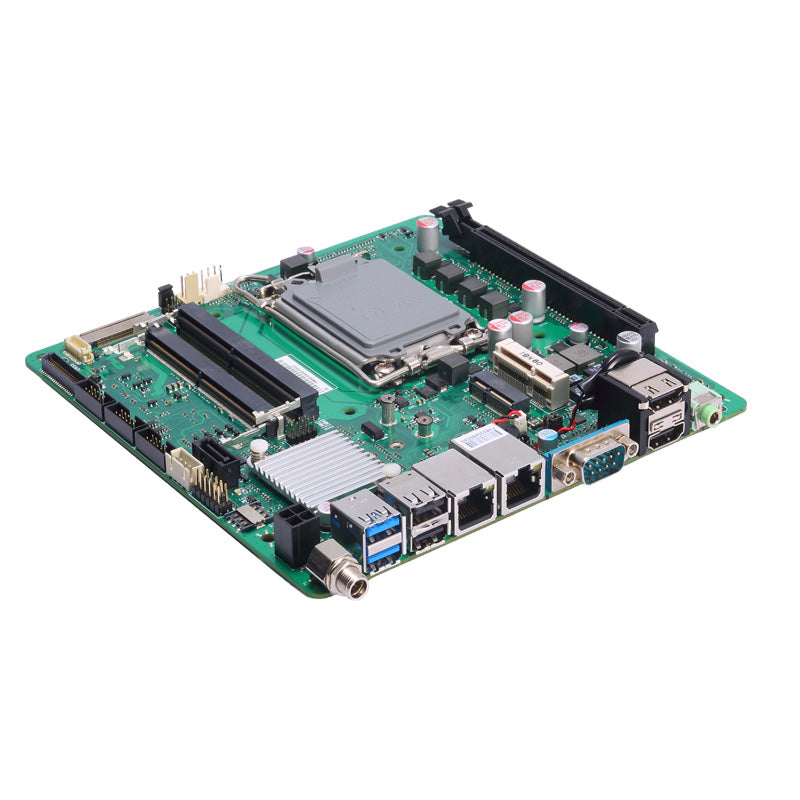

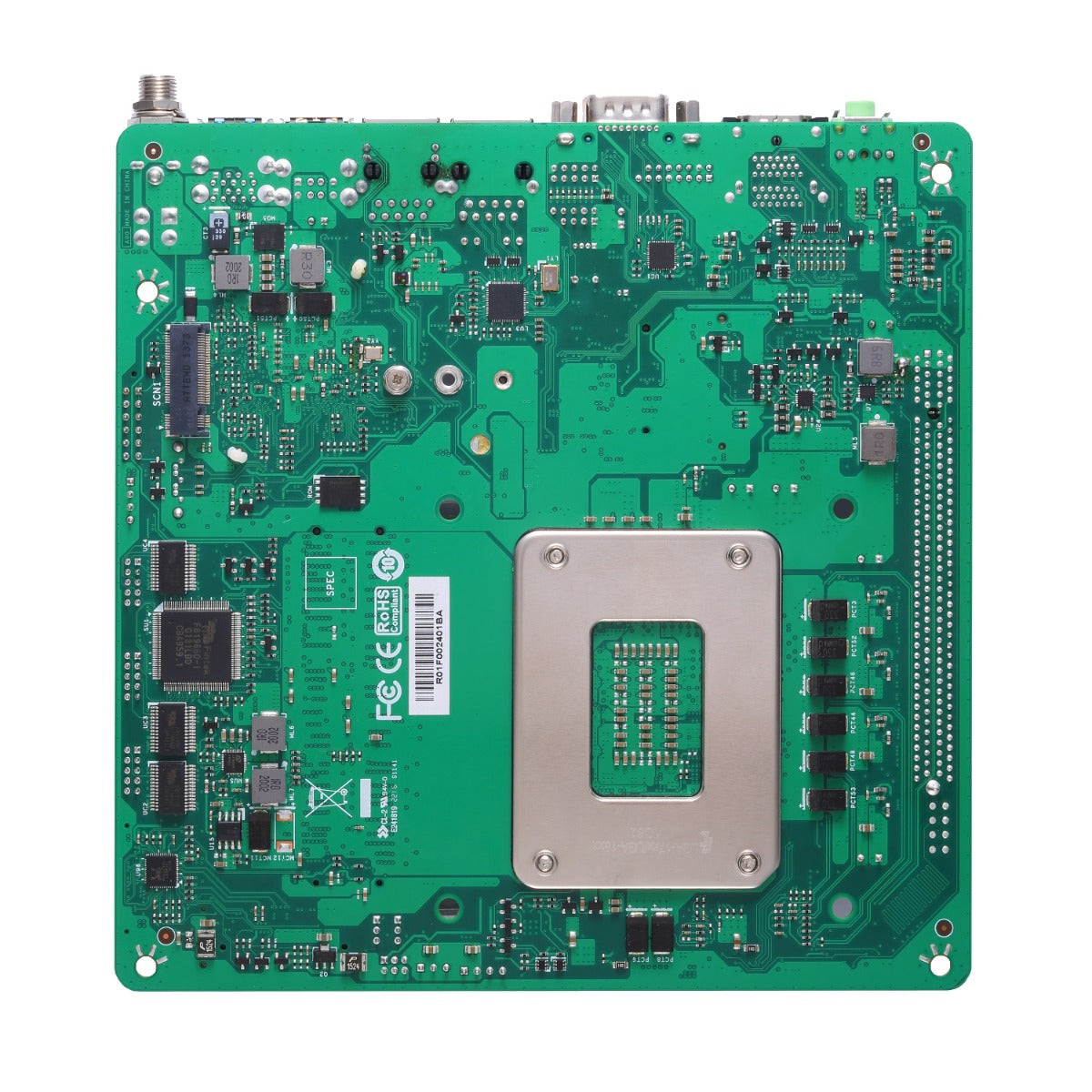

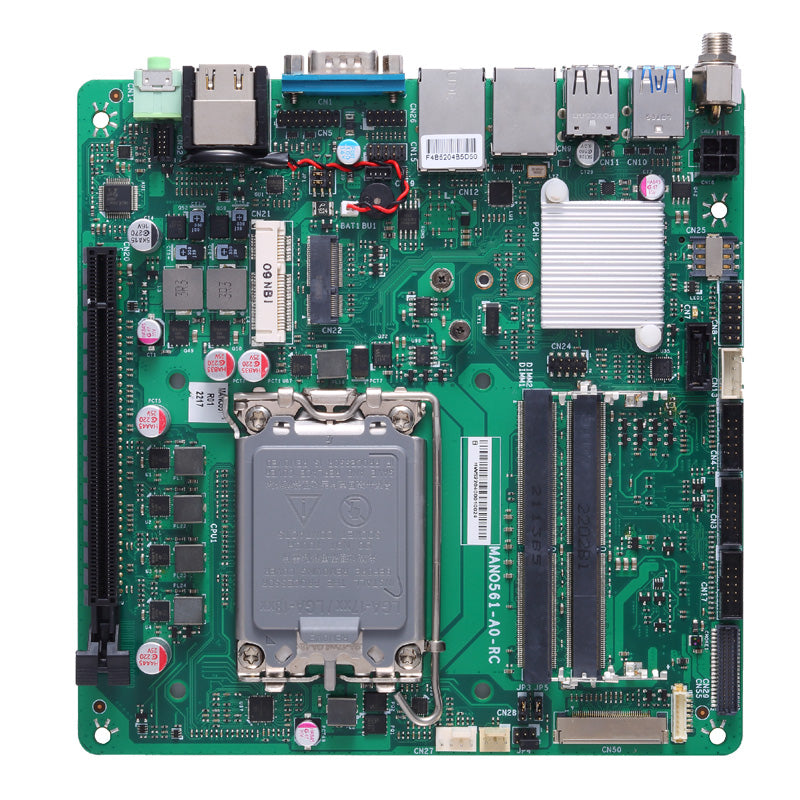

Mini ITX Motherboard MANO561

• LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
• Intel® H610 chipset
• 2 DDR4 SO-DIMM for up to 64GB memory
• 2 USB 3.2 Gen1 and 5 USB 2.0
• 2.5GbE LAN and 4 COM ports
• 1 PCIe x16, 1 M.2 Key E, and 1 M.2 Key B
• 1 full-size PCI Express Mini Card slot
• 1 SATA-600
• 12 to 24 VDC power in

Axiomtek's MANO561 is a high-performance thin Mini-ITX motherboard built with LGA1700 socket for the 12th generation Intel® Core™ processors (codename: Alder Lake-S). Aside from superior compute performance, this low-profile embedded motherboard delivers high-speed connectivity with flexible I/O, impressive graphics in support of triple displays, and high reliability by 12V-24V wide-range DC power to bridge the next-gen AIoT applications.

Axiomtek’s MANO561 is powered by the 12th generation Intel® Core™ i9/i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processors (up to 65W) with the Intel® H610 chipset. Axiomtek's embedded board has dual 260-pin DDR4-3200/2666/2400 SO-DIMM sockets with a total capacity of 64GB. When it comes to display-related features, this motherboard along with Intel® UHD graphics offers triple displays with two HDMI ports, one LVDS port, and one VGA port. Plus, it provides various wireless connectivity options which include 5G/4G/LTE connectivity with an M.2 Key B 2242/3042/3052 slot and seamless Wi-Fi connection with an M.2 Key E 2230 slot and a mini-PCIe slot. This motherboard also has a PCIe x16 slot for GPU, AI acceleration, and frame grabber card configurations.

To protect the hardware-based data, Axiomtek's MANO561 features onboard Trusted Platform Module 2.0 (TPM) to secure hardware-based data protection. Besides, this motherboard can withstand a wide operating temperature range from 0°C to 60°C (+32°F to +140°F) for providing stable ongoing system operation. In terms of I/O rich interfaces, Axiomtek's MANO561 has one 2.5GbE LAN, one GbE LAN, four 4 COM (one RS-232/422/485 and three RS-232), two USB 3.2 Gen1, five USB 2.0, one HDMI, one LVDS, one VGA, one SATA-600, 8-channel programmable digital I/O, and one HD Codec audio for ensuring a great user experience.
