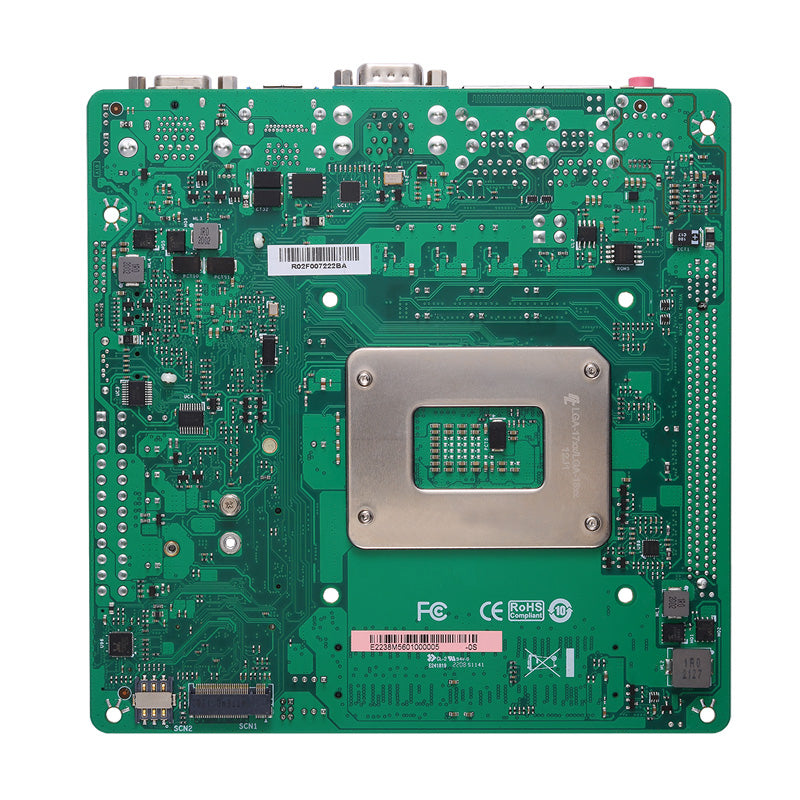

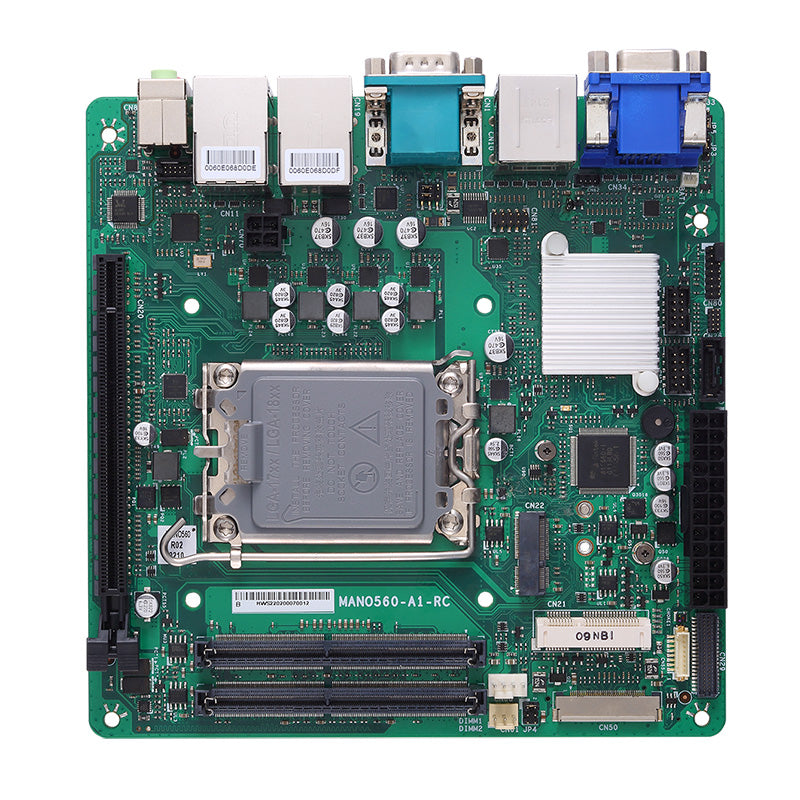

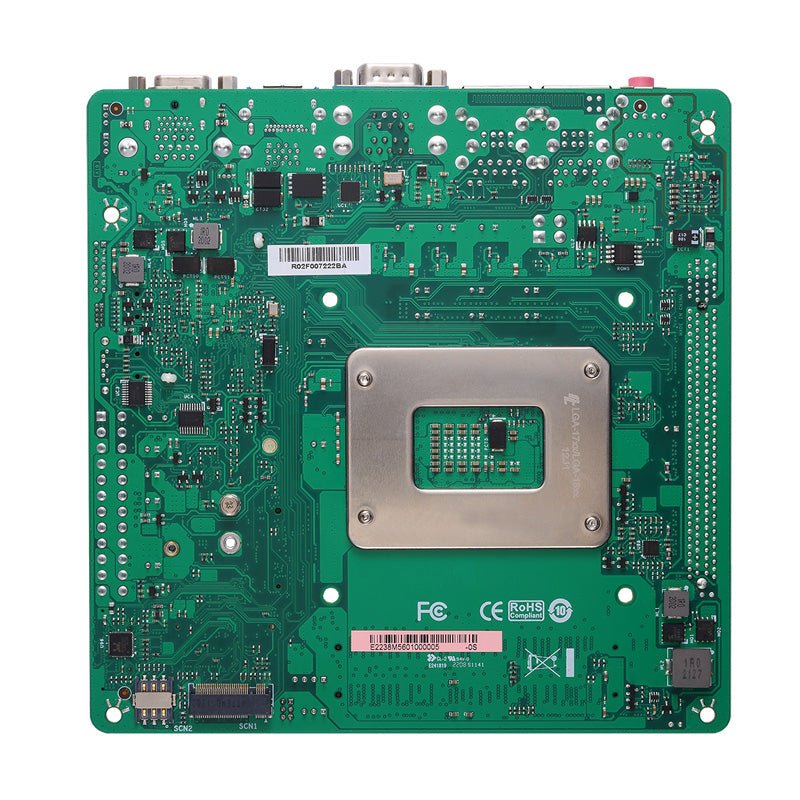

Mini ITX Motherboard MANO560

• LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® processor
• Intel® H610 chipset
• 2 DDR4 SO-DIMM for up to 64GB memory
• 2 USB 3.2 Gen 1 and 5 USB 2.0
• 4 COM ports
• 1 PCIe x16 and 1 M.2 Key E slot
• 1 full-size PCI Express Mini Card slot
• 1 SATA-600
• 1 M.2 Key B for USB 3.2 interface 5G module

Axiomtek’s industrial mini-ITX motherboard MANO560 is based on the new Intel® H610 chipset and features scalable CPU options with the 12th Gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold or Intel® Celeron® processors. While the high performance is assisted by the two DDR4-3200 SO-DIMM with up to 64GB of memory, it is equipped with one M.2 Key E 2230 for wireless module and one M.2 Key B in which the user can choose between the PCIe x2 signal, the USB 3.2 Gen1 for 3042/3052 5G module or SATA interface for 2242 SSD, making the embedded board much more flexible. Besides, it provides a full-size mini PCIe for wireless modules and a PCIe x16 for graphics cards.

Axiomtek’s MANO560 is a powerful motherboard that takes the lead in the market. I believe its versatility in terms of the I/O, display, and computing capability can propel the AIoT applications for our customers, said Kenny Lin, the product manager of the Product Planning Division at Axiomtek.

Axiomtek’s MANO560 is built to deliver high computing performance and fulfill various I/O requirements. It comes with dual Gigabit Ethernet ports, one of which is 2.5G; also, it features two USB 3.2 Gen1 and five USB 2.0 for more peripherals. What’s more, it provides four COM ports to integrate devices like sensors. The MANO560 supports a triple independent display while providing rich interfaces, including HDMI, DisplayPort++, VGA and LVDS. The eDP is BOM optional and co-lays with LVDS. For storage, it has one SATA and one M.2 SSD.

To secure the hardware-based data, Axiomtek’s MANO560 supports onboard TPM 2.0. It also supports Linux and Windows operating systems. Moreover, Axiomtek releases the ECM500, a chassis designed for the mini-ITX motherboards; we also have the capability to assist with any customer's industrial integration requirements.
