Axiomtek

3.5-inch CAPA13R

3.5” Embedded SBC with LGA1151Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN

$0.00
9% Tax included Shipping calculated at checkout.
Datasheet

- AMD Ryzen Embedded V1807B and V1605B APU
- 1 DDR4 SO-DIMM for up to 16GB of memory
- Supports quad-view display
- 4 GbE LAN
- M.2 Key E
- M.2 Key B

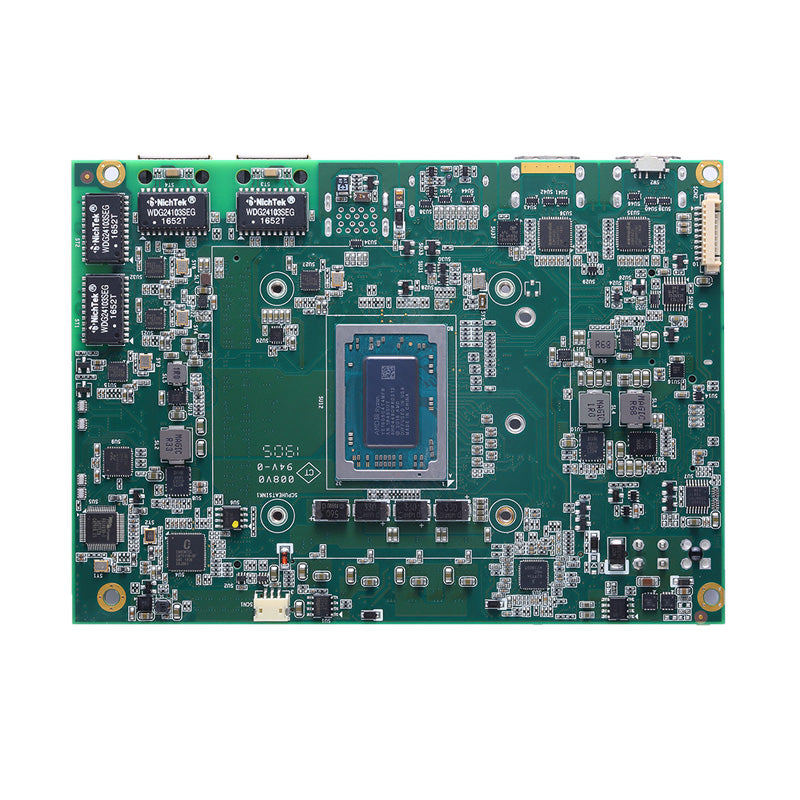

Axiomtek CAPA13R is powered by the onboard AMD Ryzen Embedded V1807B/V1605B processor with Radeon Vega graphics. The 4K embedded board is design for graphics-intensive applications such as medical imaging, video surveillance, 3D simulators, optical quality control, digital signage, kiosks/POI, thin clients, and more. The integrated AMD Radeon RX Vega graphics with the support of DirectX 12 and OpenGL 4.5 marks the cutting edge of embedded graphics. The CAPA13R can deliver truly impressive user experiences and outstanding 3D graphics quality through two HDMI, one DisplayPort++ and one LVDS. Its onboard CPU is attached to the rear side of the board, which can aid with heat dissipation and offers flexibility for easy system integration and minimum maintenance.


Axiomtek CAPA13R offers multiple expansion interfaces with one M.2 Key E slot for wireless modules and one M.2 key B slot for storage cards. One 260-pin SO-DIMM socket on the CAPA13R supports up to 16GB of DDR4-2400 (V1605B) and DDR4-3200 (V1807B) memory. The system has a +12V DC power input.
