Moxa

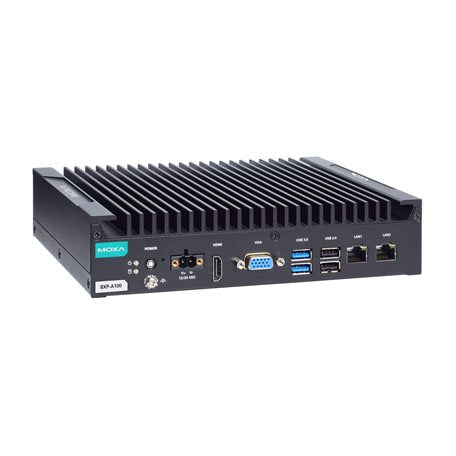

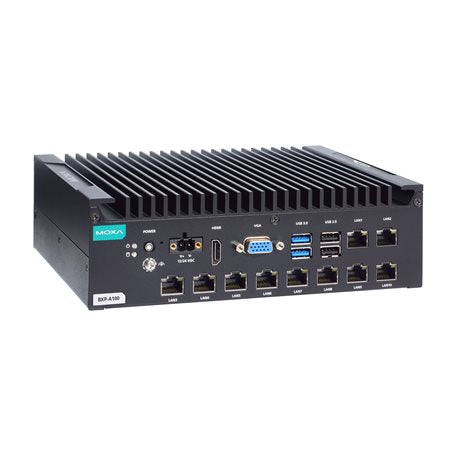

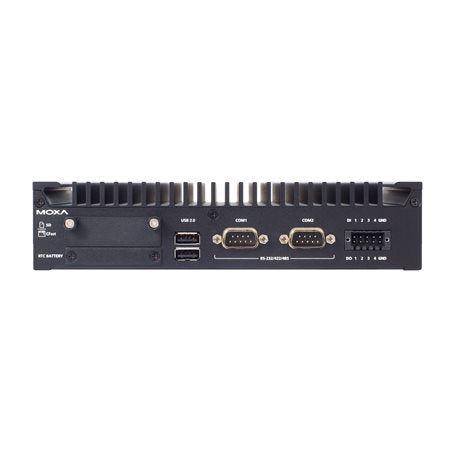

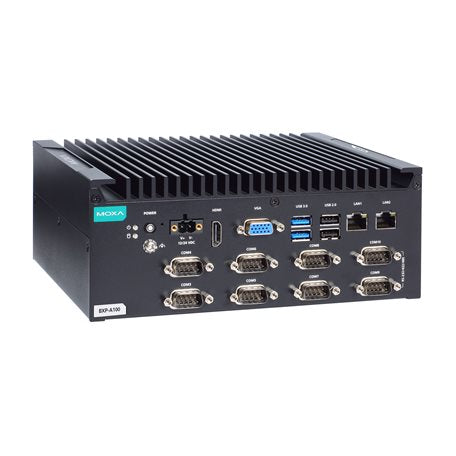

Embedded Computer BXP-A100 Series

Fanless Embedded System with Intel Atom X processor and high-density connectivity interface

$0.00
9% Tax included Shipping calculated at checkout.
Datasheet

- Industrial box-type computer with fanless design
- Intel Atom X Series processor
- Rich interface options for up to 10 RS232/422/485 serial and 10 10/100/1000 Ethernet ports
- 4 digital inputs and 4 digital outputs in a terminal block
- VGA and HDMI display output in front panel
- 2 USB 3.0 ports and 4 USB 2.0 ports
- Compact size to fit most field applications
- Operating temperature range -30 to 60°C





Moxa BXP-A100 wall-mount computers are powered by Intel Atom X processor. LED indicators help users monitor performance and simplify troubleshooting. Moxa's industrial embedded system comes with a versatile range of interface options. This includes up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover design for the battery slot secures the battery in place and ensures stability in all operating environments.



Moxa BXP-A100 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. Moxa BXP-A100 Series computing platform that fulfills both OT and IT requirements in industrial environments.



Moxa industrial computers are integrated with Windows drivers and I/O controller utilities based on the Microsoft Windows up-to-date version so that you can use the most compatible hardware-software combinations in your application field. Moxa also offers x86 Linux SDK for easy deployment. Moxa Linux SDK includes peripheral drivers, peripheral control tools, and configuration files. The SDK also provides deployment functions such as build & installation log, dry-run, and self-test on target models.

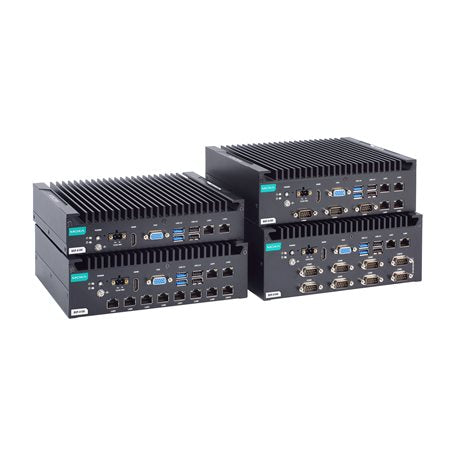

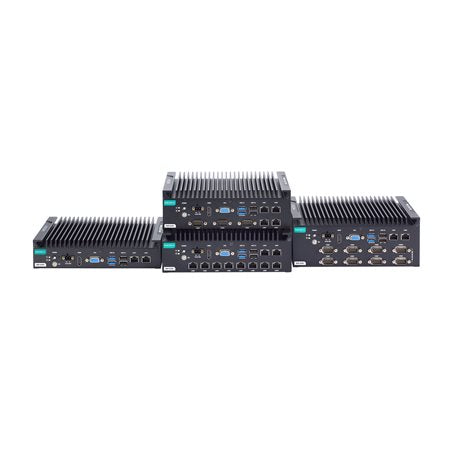

Box Computing Platform BXP-A100
