Axiomtek

Embedded Computer eBOX570

Fanless Embedded System with 13th Gen Intel Core i7/i5/Celeron Processor, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC

Datasheet
$0.00
9% Tax included Shipping calculated at checkout.

- 13th gen Intel Core processor (Raptor Lake P)
- Fanless design with operating temperature from -40°C to +70°C
- 1 DDR4 SO-DIMM for up to 32GB of memory
- Supports the USB power on/off control function
- Supports high-speed NVMe storage (M.2 Key M 2280)
- Supports Intel vPro and TPM 2.0



Axiomtek eBOX570 is a high-performance edge computer engineered for autonomous mobile robots (AMRs) and automated guided vehicles (AGVs) controllers. eBOX570 is powered by the 13th gen Intel Core i7/i5 or Celeron processors (codename: Raptor Lake P). With its rugged design, the fanless eBOX570 features a wide operating temperature range of -40°C to +70°C. The versatile edge computer boasts 8 dedicated bandwidth USB ports that support USB power on/off control, providing users with ample connectivity options for connected devices. The eBOX570 supports ROS 2 software and integrates seamlessly with various imaging cameras. Its optimized design empowers efficient operation and exceptional performance, giving it a competitive edge in the field of smart automation.

Axiomtek eBOX570 features Intel vPro, which not only enhances security and remote management capabilities but also boosts performance, making it perfect for efficient operations. The rugged emdedded system is equipped with one 260-pin DDR4-3200 SO-DIMM slot, supporting a maximum capacity of 32GB for enhanced multitasking capabilities and memory performance. It offers one M.2 Key M 2280 socket for high-speed NVMe storage. It also features one M.2 Key E 2230 socket supporting PCIe and USB 2.0 signal for Wi-Fi 6E, along with one full-size PCI Express Mini Card slot (PCIe, USB 2.0, and SIM signal) for various expansion needs. For enhanced system integrity and efficiency, the edge computing system supports TPM 2.0 to provide advanced security features and remote management capabilities. The eBOX570 offers multiple mounting options, including support for wall mount kit, DIN-rail kit, and VESA mount kit, optimizing versatility and installation convenience.

Axiomtek eBOX570 uses a 12 VDC power input. It includes dual Gigabit Ethernet ports: one featuring Intel® I210-IT, supporting Wake-on-LAN and PXE Boot ROM, and another with Intel® I219-LM, supporting Wake-on-LAN, PXE Boot ROM, and Intel® AMT for enhanced remote management capabilities.

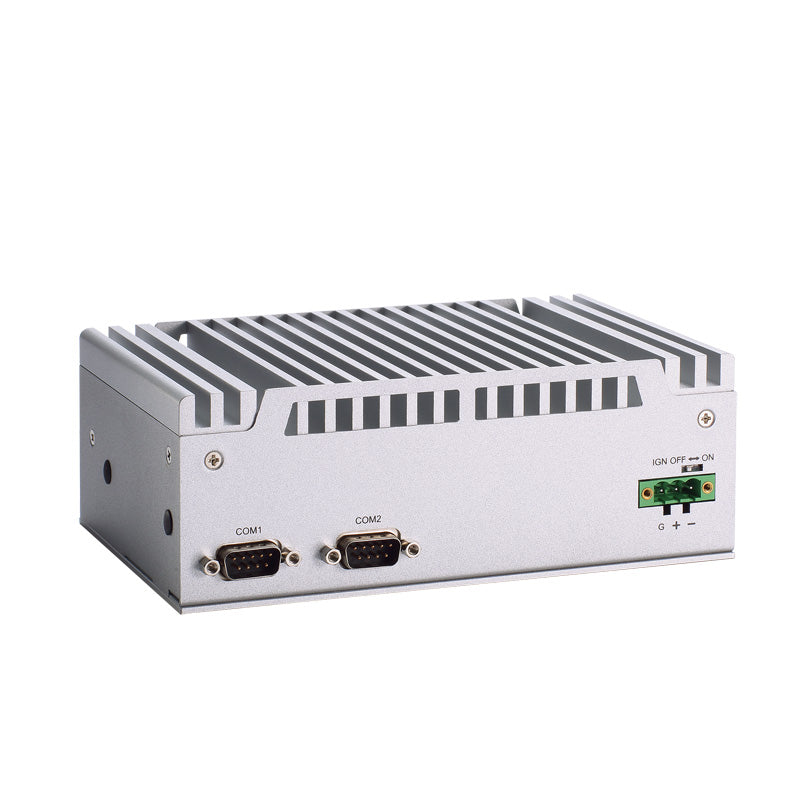

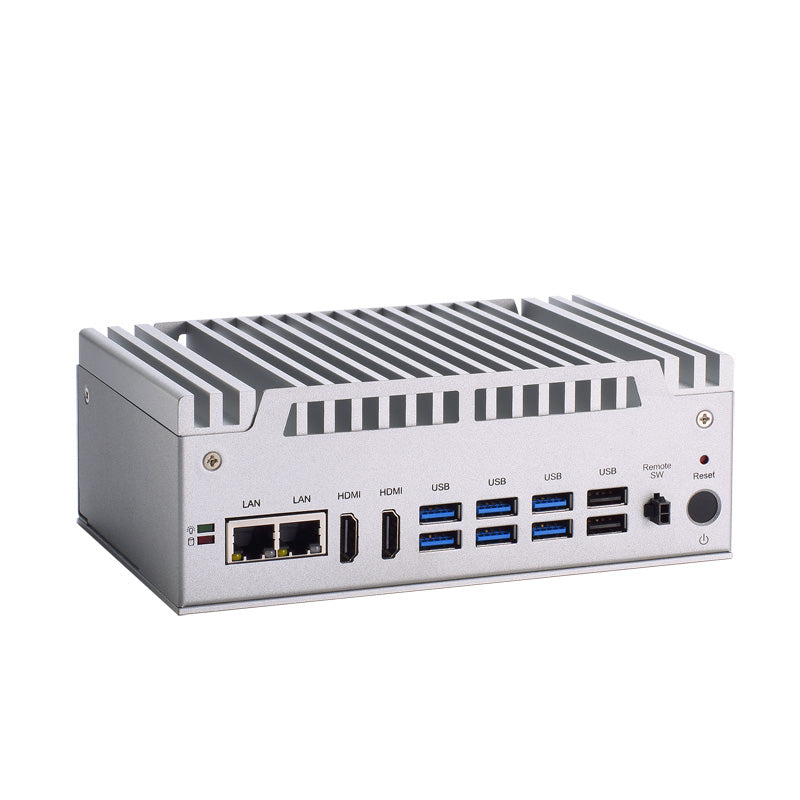

I/O expansion interfaces include two RS-232/422/485, four USB 3.2 Gen2x1 (10G) Type A, two USB 3.2 Gen1x1 (5G) Type A, two USB 2.0, two HDMI 1.4b @30Hz with 4096 x 2160 resolution, one power button, one reset switch connector, one remote switch, two antenna openings. This versatile embedded computer supports Windows 11 IoT and Linux operating system.
