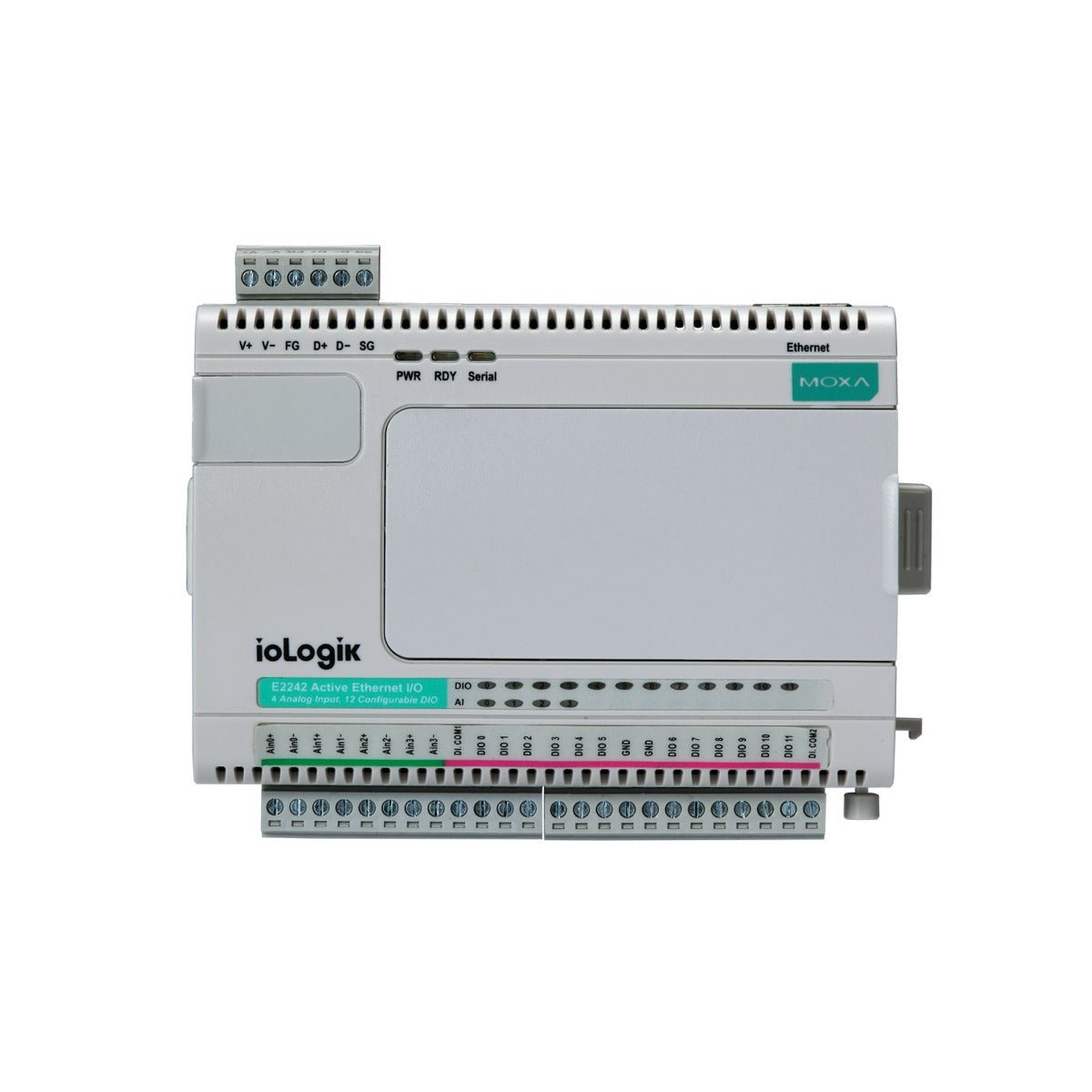

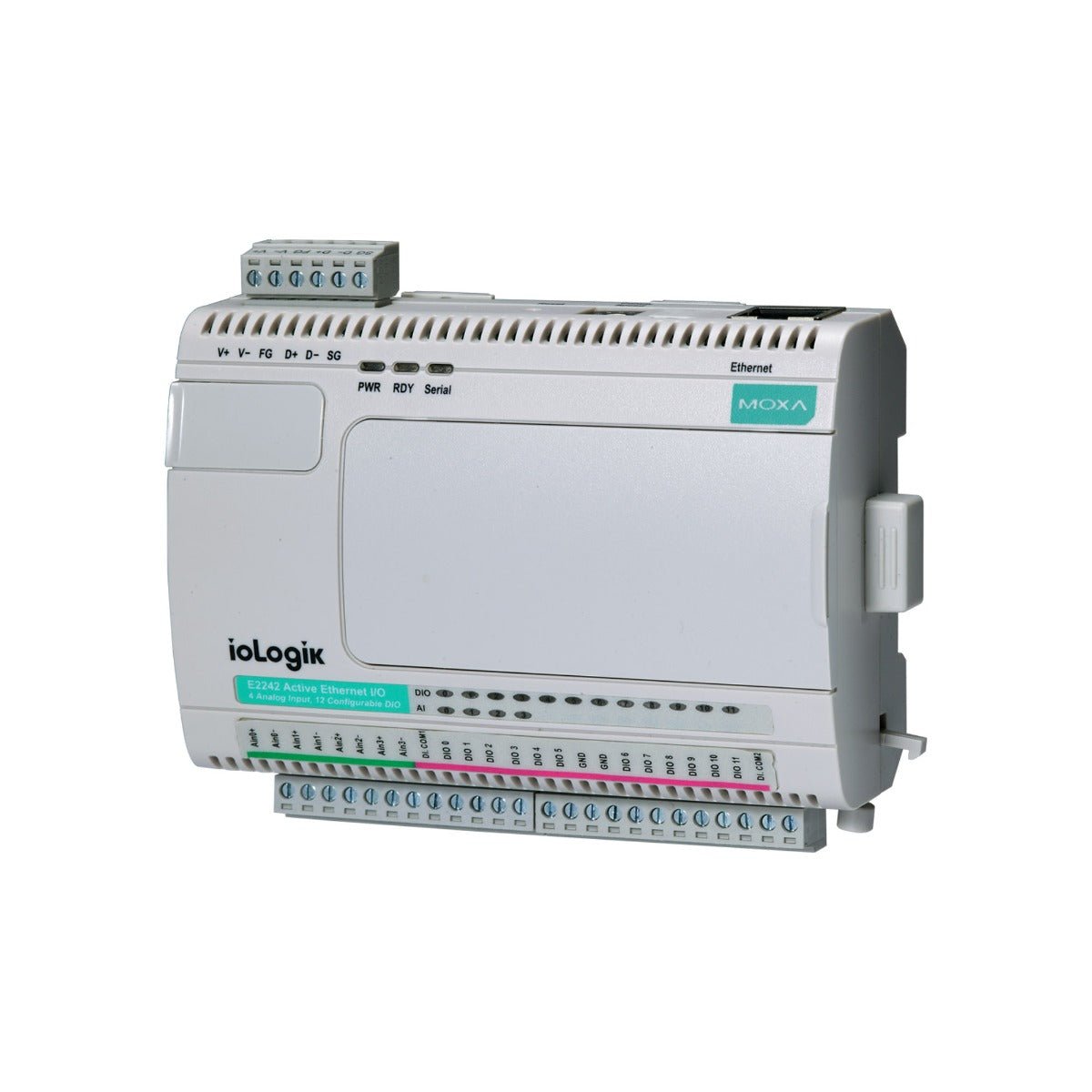

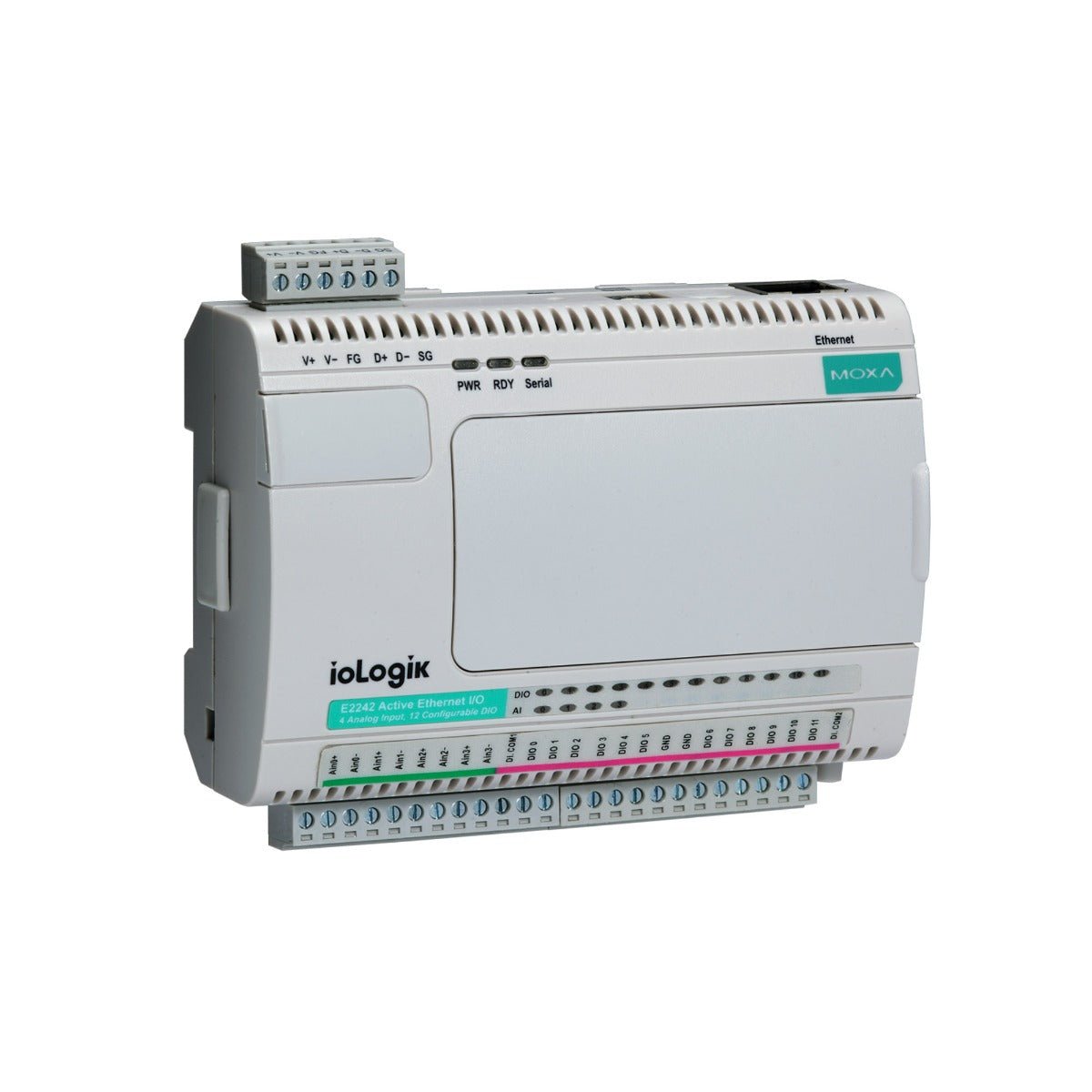

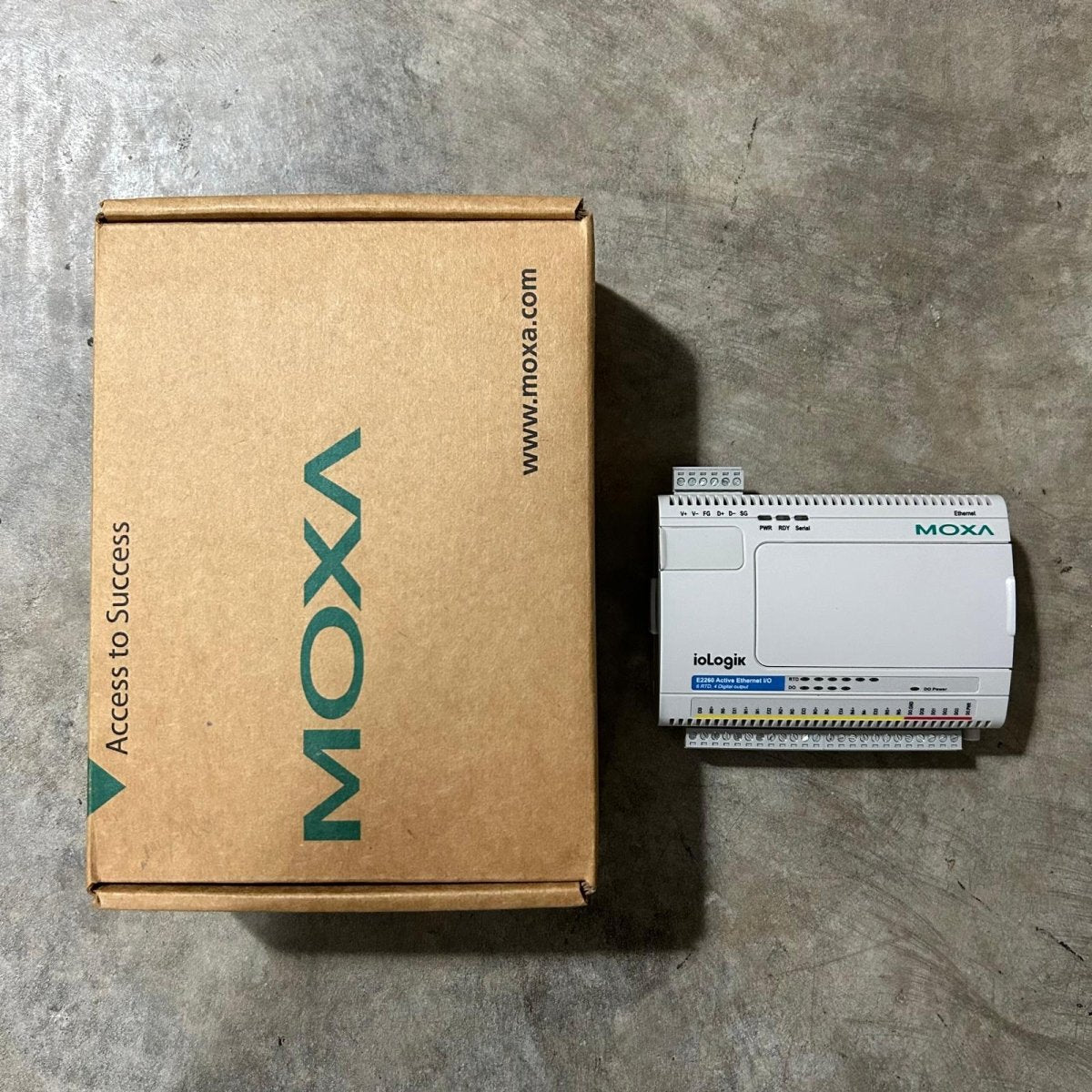

Ethernet Remote I/O ioLogik E2260

Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will, when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.

ioLogik E2260 Specifications

Inputs and Outputs
RTD Inputs: 6 channels
Digital Outputs: 4 channels
Isolation: 3K VDC or 2K Vrms

RTD Inputs
Input Type: PT50, PT100, PT200, PT500, PT1000; JPT100, JPT200, JPT500, JPT1000; NI100, NI120, NI200,
NI500, NI1000; Resistance of 310, 620, 1250, and 2200 ohms
Sampling Rate: 12 samples/sec (all channels)
Resolution: 0.1°C or 0.1 ohm
Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C
Input Impedance: 625K ohms

Digital Output
Type: Sink
I/O Mode: DO or Pulse Output
Pulse Output Frequency: 100 Hz
Over-voltage Protection: 45 VDC
Over-current Protection: 2.6 A (4 channels @ 650 mA)
Over-temperature Shutdown: 175°C
Current Rating: 200 mA per channel

Power Requirements
Power Consumption: 95 mA @ 24 VDC
