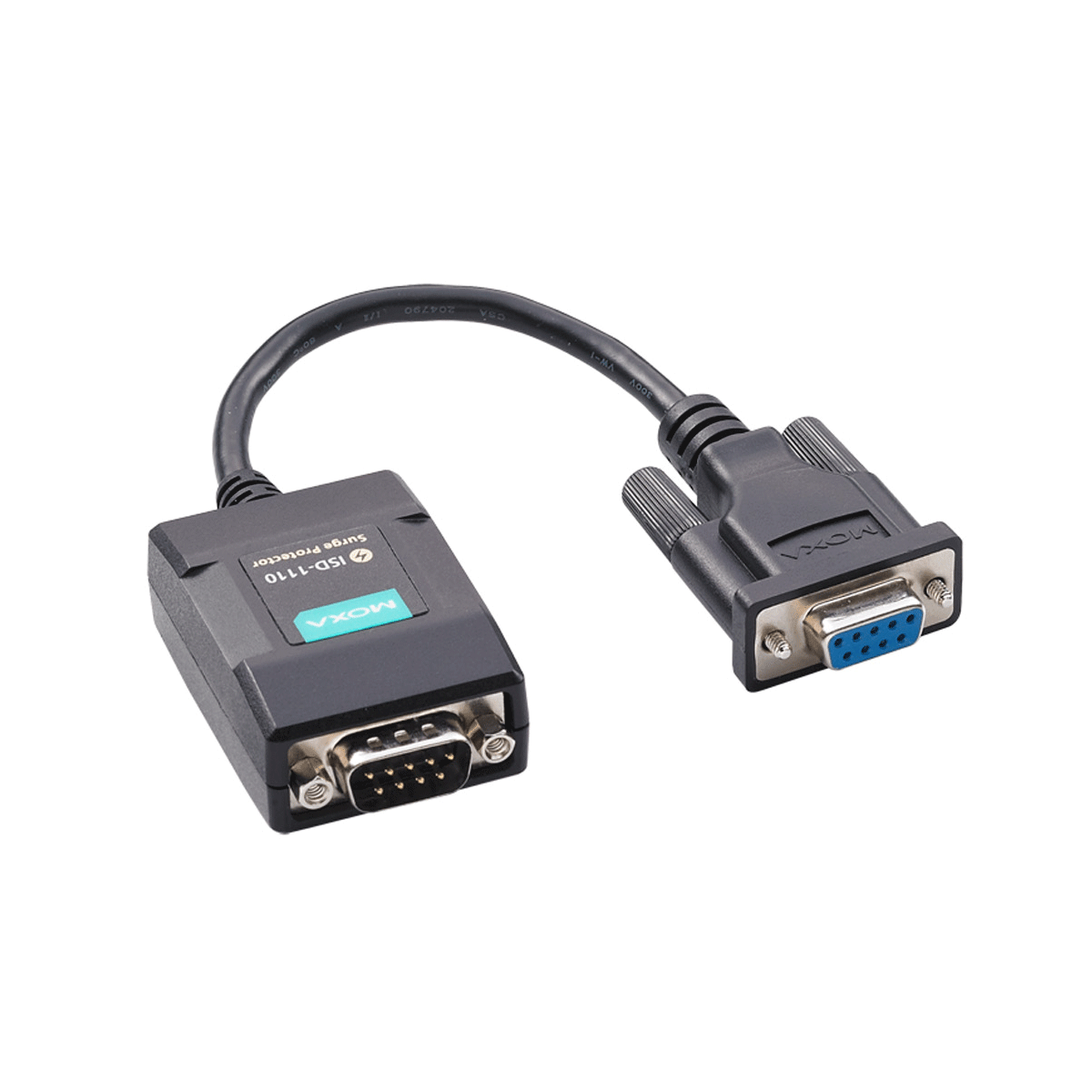

Surge Protector ISD-1110-T

- Plug and play
- Surge protection for serial data lines (EN 61000-4-5 Level 4)
- Supports RS-232 serial signals (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND)
- Compact size for easy installation, IP30 rated plastic housing
- Wide operating temperature for -40 to +85C environments

Maximum Power Protection: 400 watts
Number of Protected Lines: 7
Surge Capacity: 4kV, 8/20 μs impulse per line
Working Voltage: 5 V
Maximum Load Current: 0.1 A (23C), 0.05 A (85C)
Connectors: DB9 male (Data in), DB9 female (Data out)

In industrial environments, power surges are a major source of serial device failure. These surge protectors helps prevent damage from electrical surge and spikes on RS232 data lines. Installation is easy with the compact plug and play design. Moxa ISD-1110-T series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. Moxa ISD-1110-T series can add serial data line protection to a variety of serial connections. TNS recommends Moxa ISD-1110-T for general purpose applications, such as engines, low power motors (below 4 kW) and low voltage power systems
