Moxa

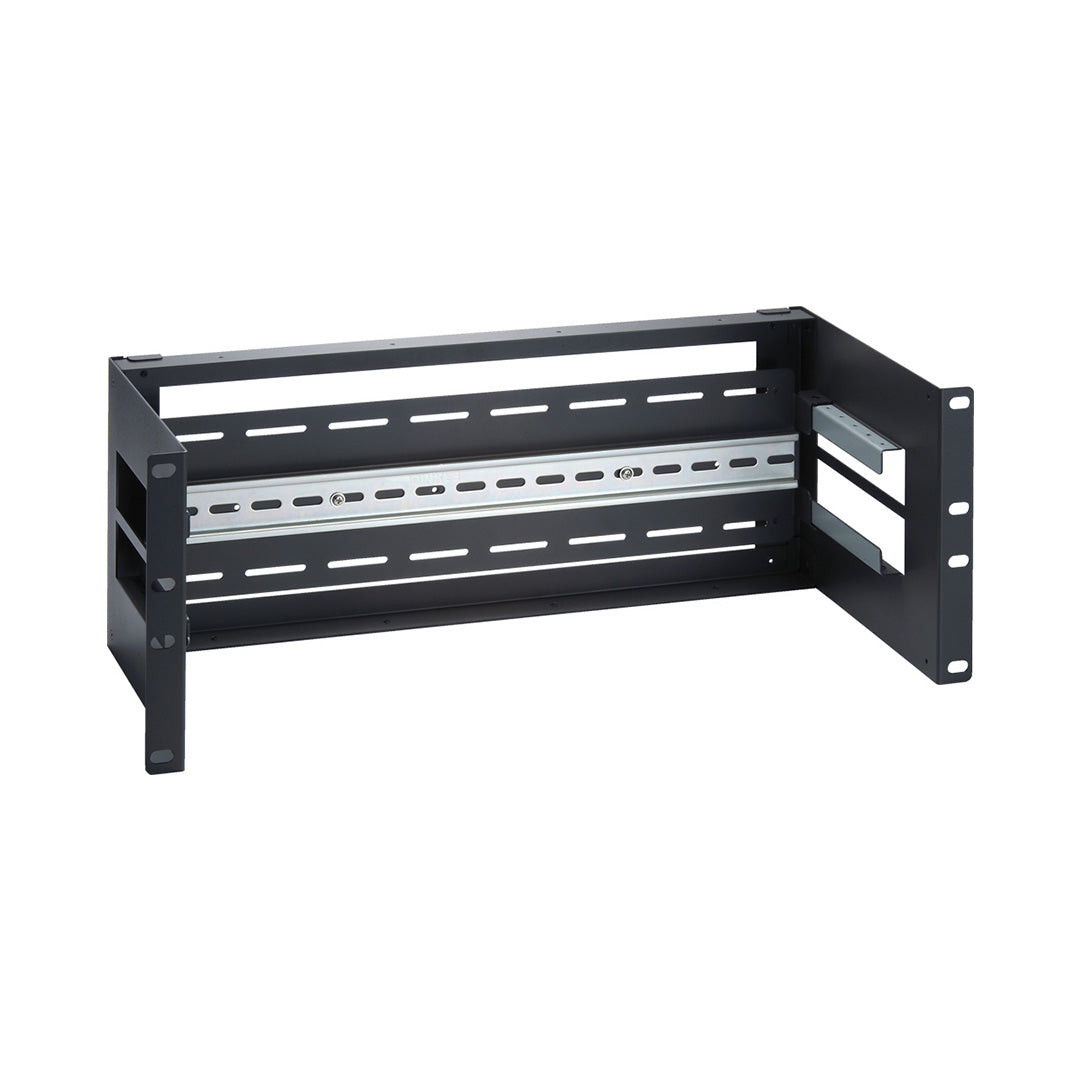

Rack Mounting Kit RK-4U

Industrial 19" Rackmount Kit. Adaptable for wallmount applications. Requires assembly (4 steps)

$0.00
9% Tax included Shipping calculated at checkout.
Datasheet

- Din-rail mount or wall mount devices into 19” rackmount cabinet.
- Robust metal construct weighing 1.77 Kg

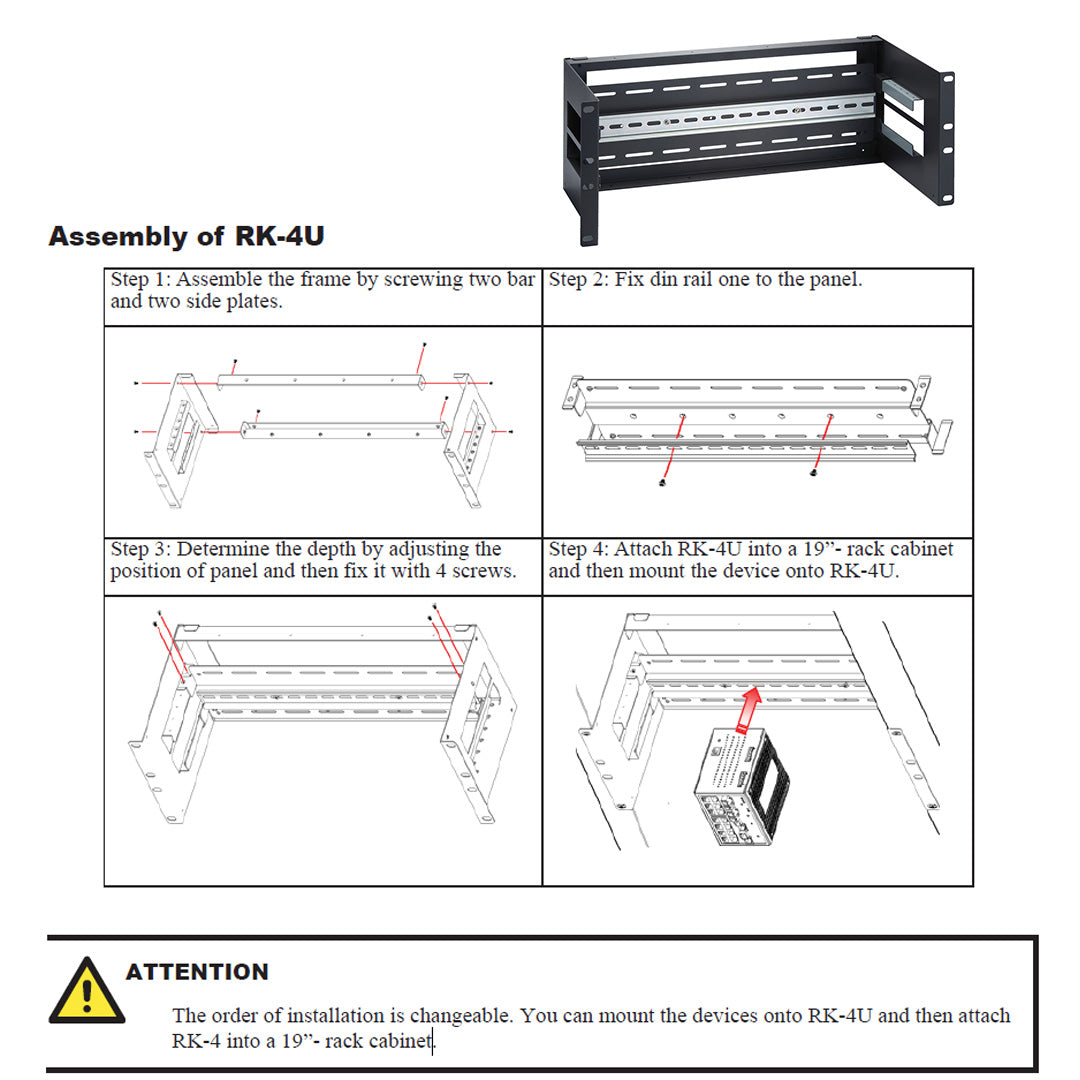

- Users have the flexibility to mount devices onto RK-4U prior to installation on rack cabinet

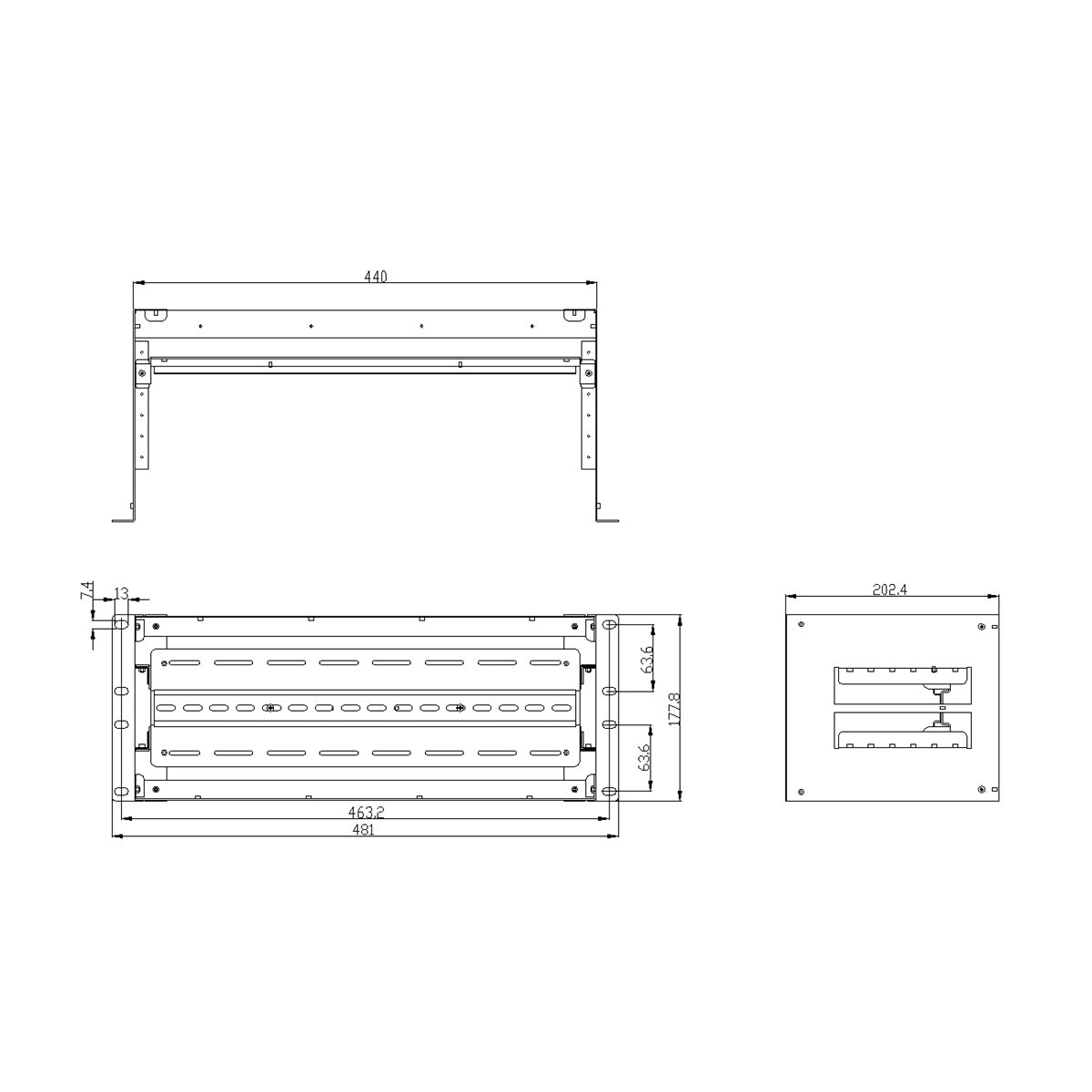

- Dimensions: 481 mm x 178 mm x 203 mm (L x W x D)



Moxa RK-4U is a versatile auxiliary tool for installing Din-rail devices in 19”- rack cabinet with adjustable depth. Moxa RK-4U can be used to mount din-rail devices onto the din rail attached on the panel or onto the panel directly like wall mounting. The robust frame ensures that the panel and products are firmly secured inside 19"-rack cabinets. To further optimise space in RK-4U, devices can be mounted onto the din rail before assembly.

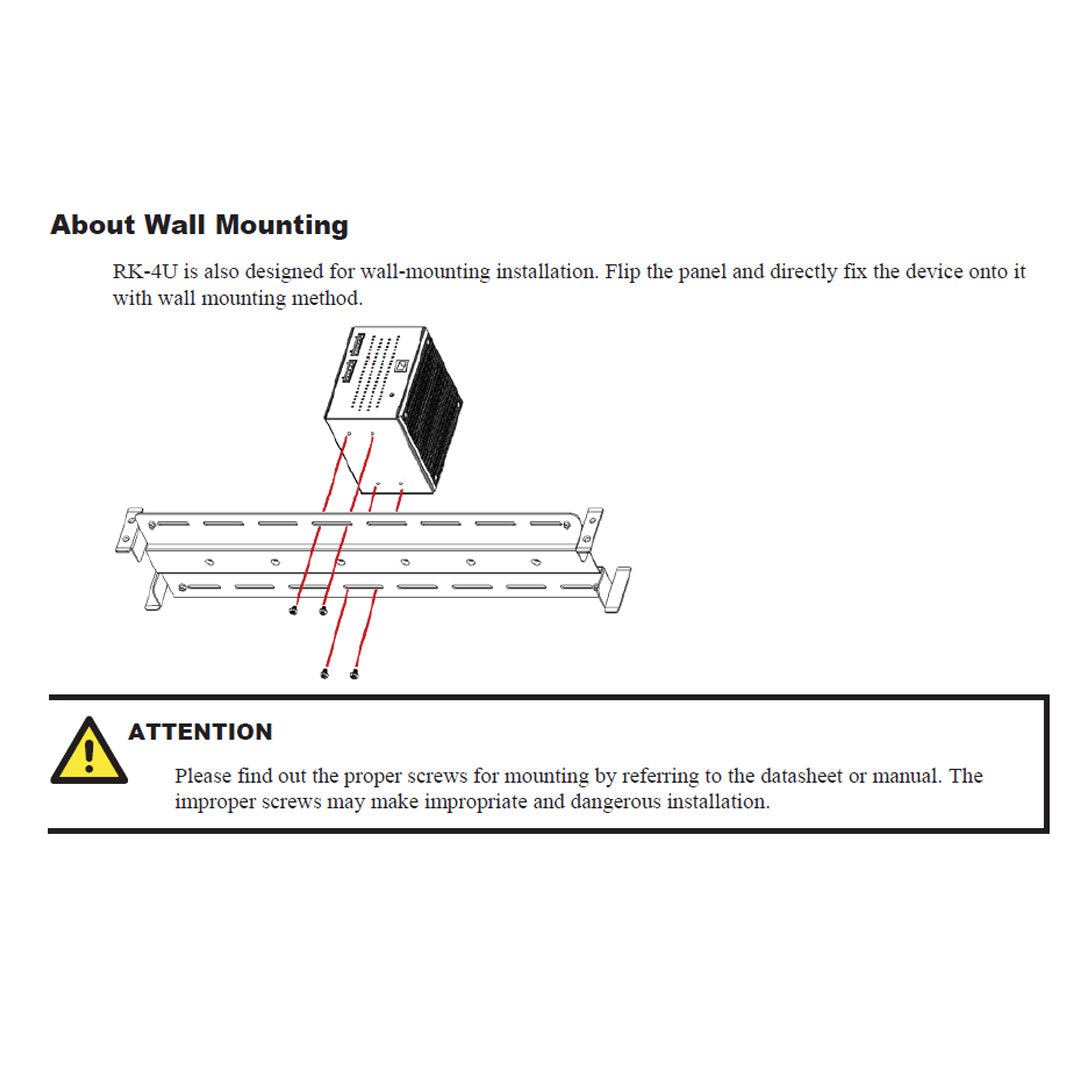

This industrial rackmount system can be adapted for wall mounting applications. The system is compatible with Moxa devices and is suitable for general din rail devices. Product depth is 203mm. Order of installation is changeable. You can mount the devices onto RK-4U and then attach RK-4 into a 19”- rack cabinet.


Moxa RK 4U Package List
-    A set of frame parts in a paper box, including one din rail, one panel, two bars, and two side plates;
-    A bag of screws;
-    Hardware installation guide

Rack Mounting Kit Moxa RK-4U
Moxa

Rack Mounting Kit RK-4U

$0.00

- Din-rail mount or wall mount devices into 19” rackmount cabinet.
- Robust metal construct weighing 1.77 Kg
- Users have the flexibility to mount devices onto RK-4U prior to installation on rack cabinet
- Dimensions: 481 mm x 178 mm x 203 mm (L x W x D)



Moxa RK-4U is a versatile auxiliary tool for installing Din-rail devices in 19”- rack cabinet with adjustable depth. Moxa RK-4U can be used to mount din-rail devices onto the din rail attached on the panel or onto the panel directly like wall mounting. The robust frame ensures that the panel and products are firmly secured inside 19"-rack cabinets. To further optimise space in RK-4U, devices can be mounted onto the din rail before assembly.



This industrial rackmount system can be adapted for wall mounting applications. The system is compatible with Moxa devices and is suitable for general din rail devices. Product depth is 203mm. Order of installation is changeable. You can mount the devices onto RK-4U and then attach RK-4 into a 19”- rack cabinet.


Moxa RK 4U Package List
-    A set of frame parts in a paper box, including one din rail, one panel, two bars, and two side plates;
-    A bag of screws;
-    Hardware installation guide
