Moxa

AC/DC Power Adapter 6W 12VDC

Universal switch mode 100 to 240 VAC adapter with non-locking barrel plug, 12VDC, 0.5A

Datasheet
SGD $42.51
Tax included Shipping calculated at checkout.

Designed for information technology equipment (ITE), Moxa AC/DC power adapters provides a reliable power source. This compact series of 6W adapter is compatible with the following Moxa products:

Moxa Product Series Model Name
Serial to Ethernet Converters (1-2 port) Moxa NPort 5110, NPort 5130, NPort 5150, NPort 5210, NPort 5230, NPort 5232, NPort 5232I, DE-211, DE-311
Serial to Serial Converters Moxa TCC-80, TCC-80-DB9, TCC-80I, TCC-80I-DB9, TCC-82, A52, A53
Modbus Gateways (1-2 port) Moxa MGate MB3180, MGate MB3280



Default plug type is UK. For other options, please contact TNS. Wide temperature models for -40 to 75C are available via pre-order.

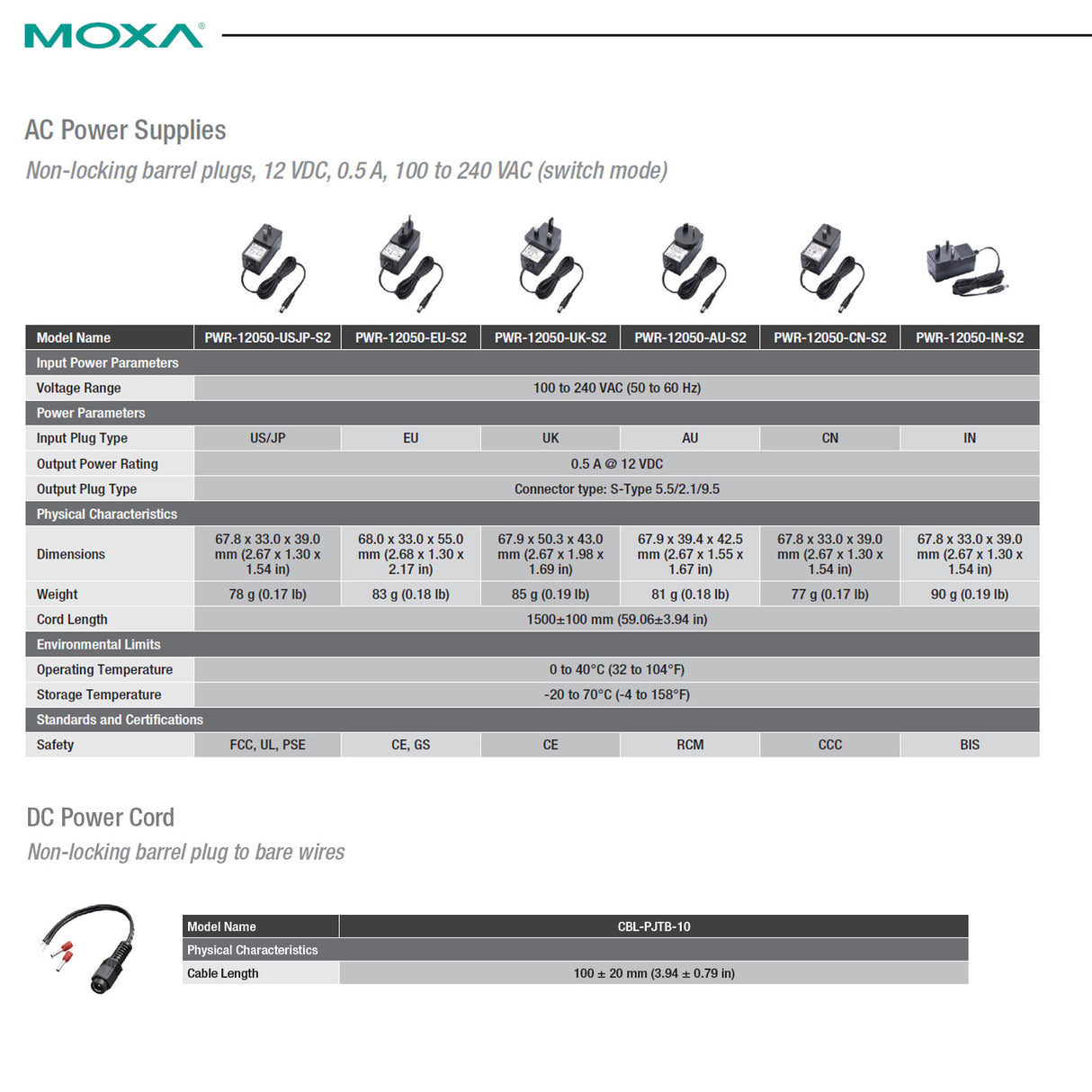

Input Rating: 100-240VAC, 50/60Hz, 0.2A
Output Rating: 12VDC/0.5A
Output Plug: S-type connector 5.5/2.1/9.5, non-locking barrel plug type

Operating Temperature Range: 0 to 40C
*Optional wide temperature models available (-40 to 75C)


Power Input Plug Type

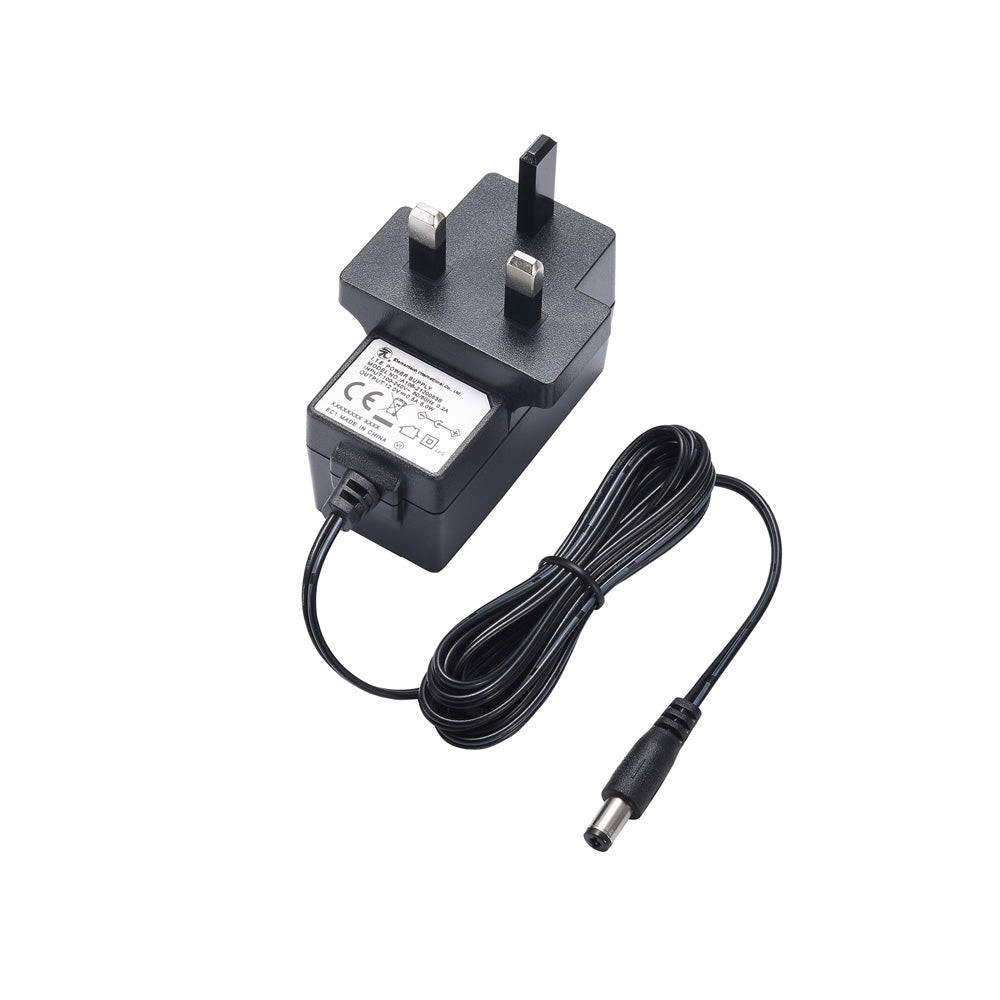

PWR-UK Models: United Kingdom plug type (TNS Default Model)
PWR-AU Models: Australia plug type

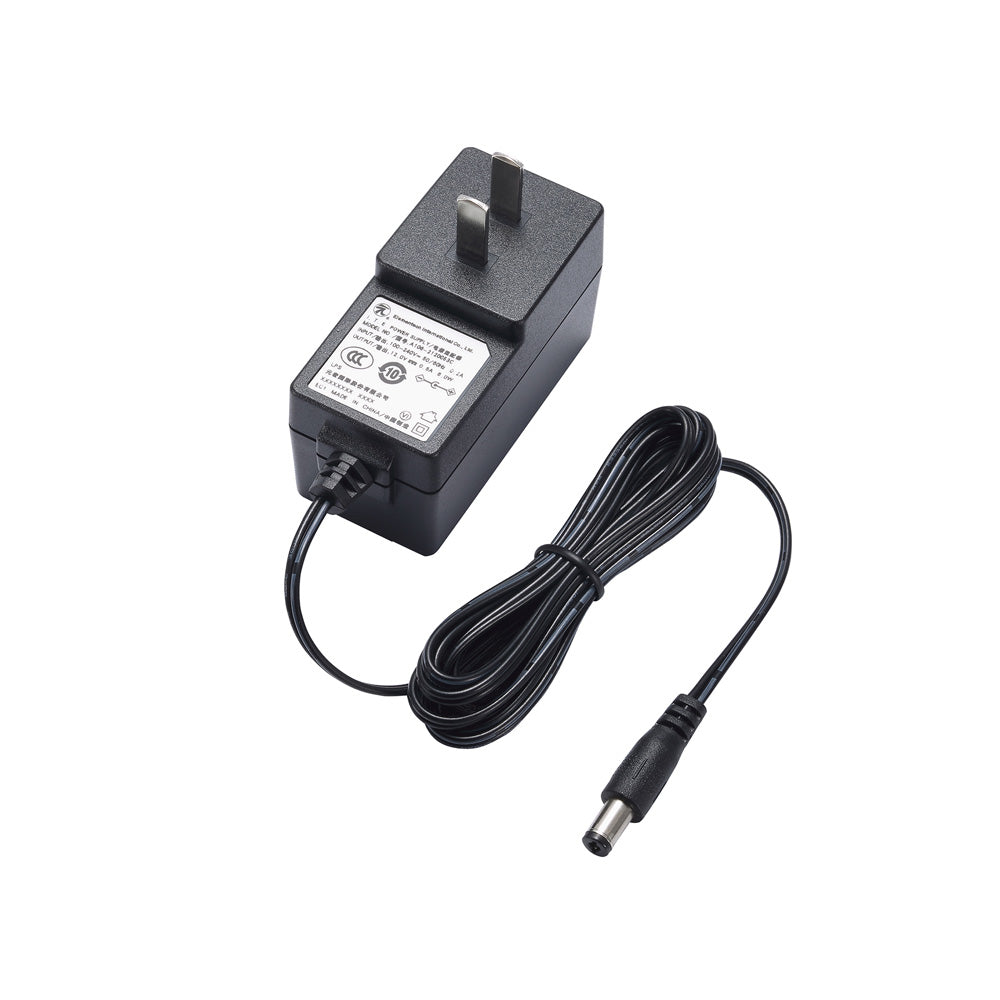

PWR-CN Models: China plug type

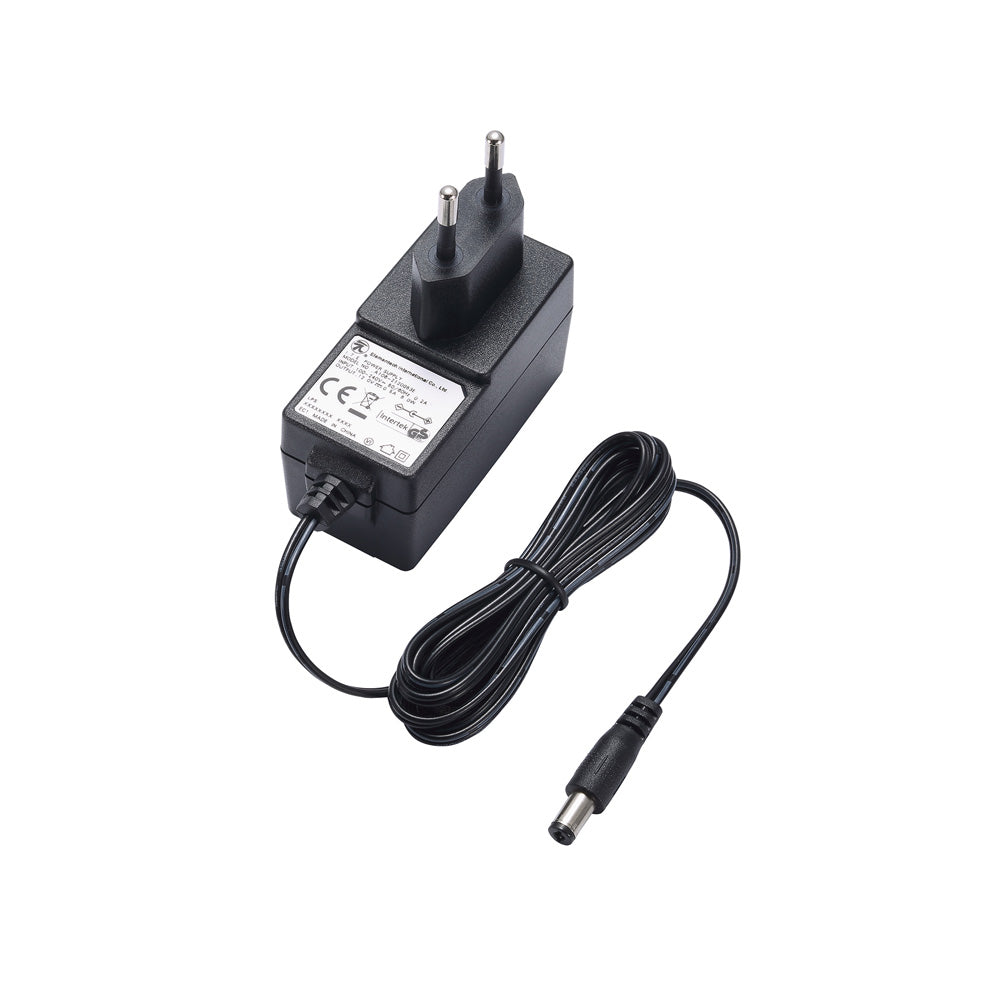

PWR-EU Models: Europe plug type

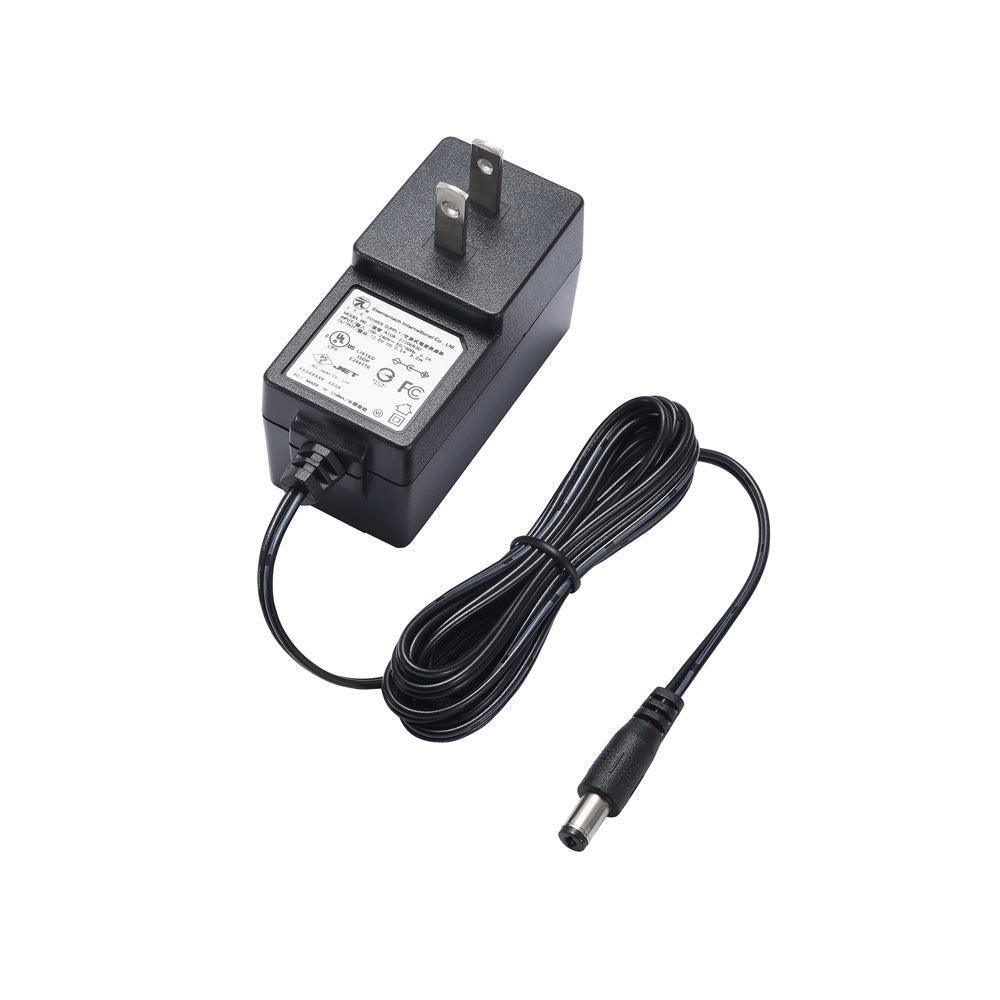

PWR-USJP Models: United States/Japan plug type
PWR-KR Models: Korea plug type

Standards and Certifications
PWR-12050-AU Models: RCM
PWR-12050-CN Models: CCC
PWR-12050-EU Models: CE/GS
PWR-12050-KR Models: KCC
PWR-12050-UK Models: CE
PWR-12050-USJP Models: FCC/UL/PSE
