TNS Demo Setup
Network Topology
Modern systems require reliable network communication, secure access, real-time device control and accurate data.
Our demo combines network redundancy, secure connectivity and field-device communication. The EDS-G4012 and EDS-4008 form a Turbo Ring v2 network, while the EDS-G512E and EDR-G9010 extend redundancy through Turbo Chain.
The NPort 6150-G2, MGate MB3170-G2 and ioThinx 4510 are connected to the network for serial communication, power-meter data collection and digital or analogue I/O control. Network management software, MXview One provides a central view of the devices, connections, port status and redundancy roles, making the complete network easier to monitor and manage.
Networking Products (Turbo Ring V2 & Chain)
-

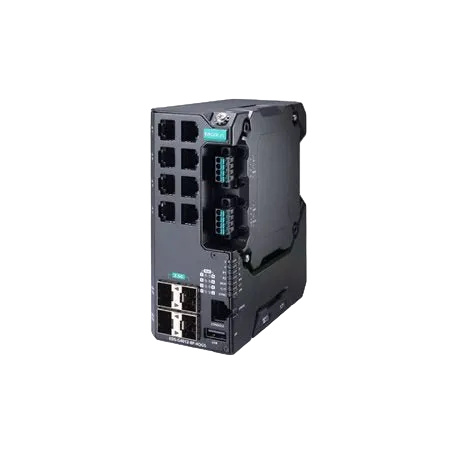

EDS-G4012
Turbo Ring v2 (Master)
Forms the main redundant network and helps maintain communication if one of the ring links is disconnected.
-

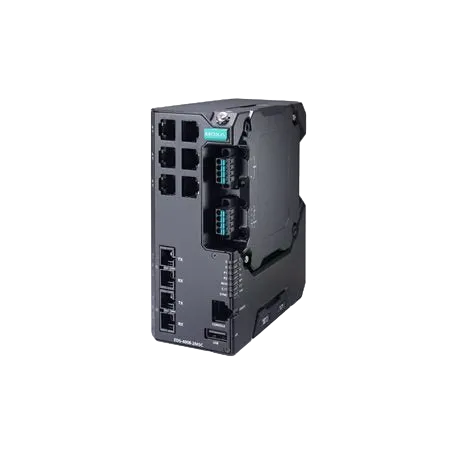

EDS-4008
Turbo Ring v2 (Partner Switch)
Works with the EDS-G4012 to complete the redundant ring and provide an alternative communication path.
-

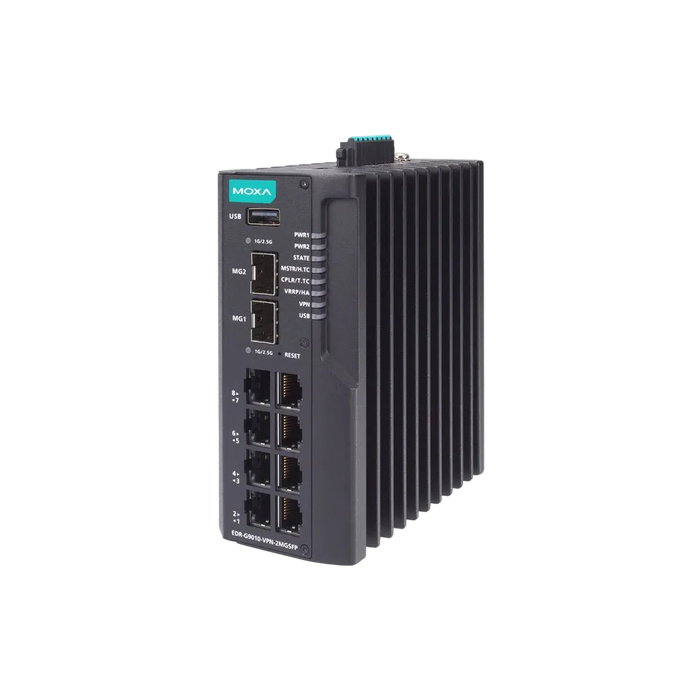

EDR-G9010
Turbo Chain (Head)
Secure router that connects NPort, MGate and ioThinx, acts as the Turbo Chain Head, and secures communication using firewall, NAT and VPN.
-

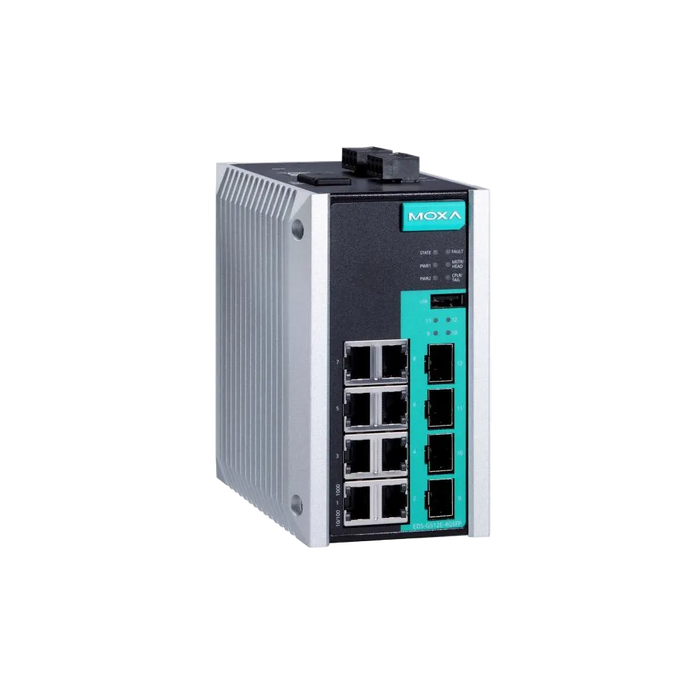

EDS-G512E
Turbo Chain (Tail)
Acts as the Turbo Chain Tail, completing the chain and linking it to the wider redundant network for reliable communication.
Serial Communication & I/Os
-

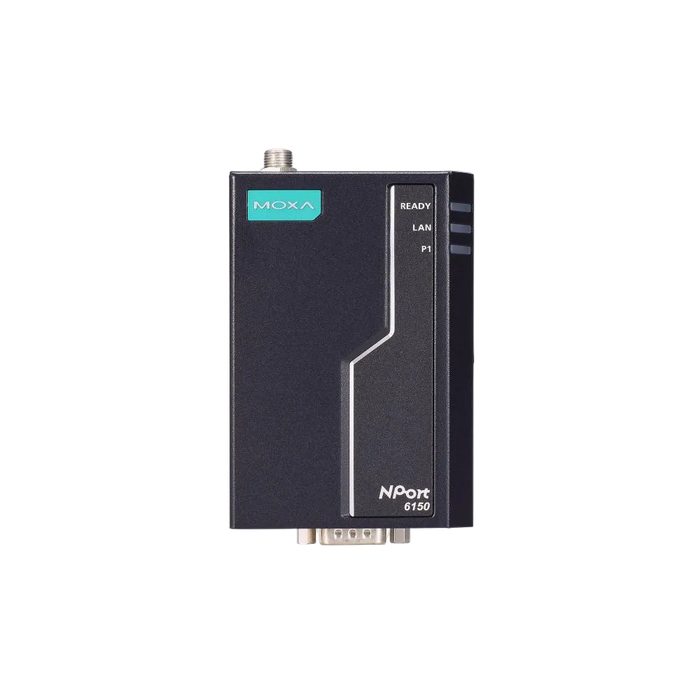

NPort 6150-G2
Secure Serial to Ethernet Communication
Demonstrates serial loopback communication through its web console and PComm Terminal, allowing transmitted data to be tested over the network.
-

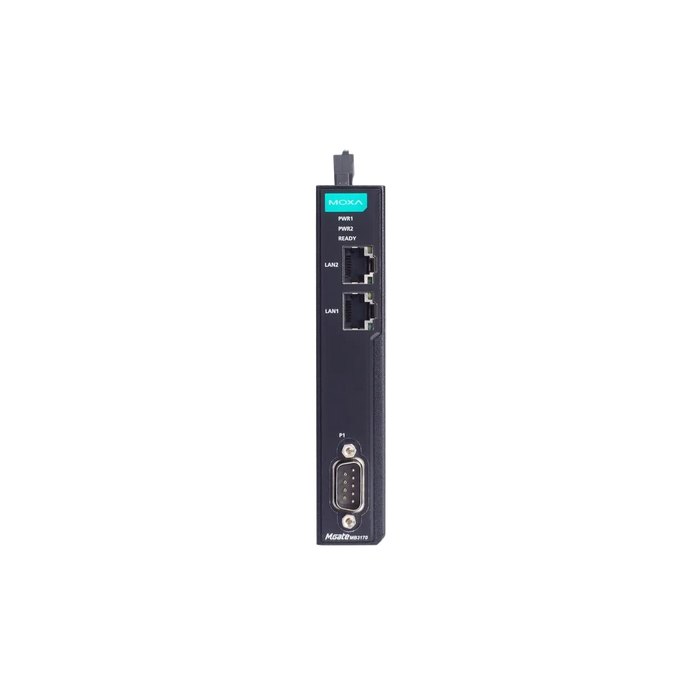

MGate MB3170-G2
Secure Modbus Protocol Gateway
Retrieves serial Modbus readings from power meter and makes the information available to Ethernet-based monitoring systems.
-

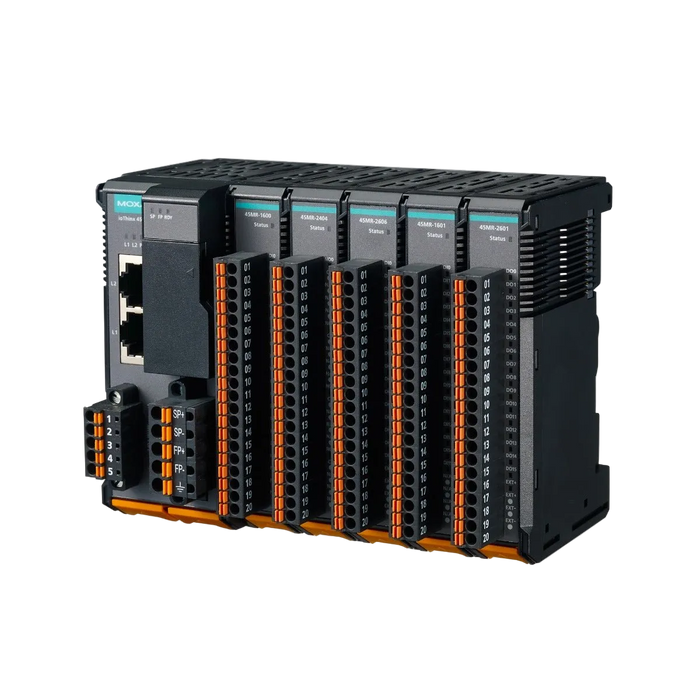

ioThinx 4510
Modular Digital & Analogue I/O Control
Monitors and controls LEDs, a potentiometer and a button using the 45MR-2404 relay output, 45MR-3800 analogue input, 45MR-4420 analogue output and 45MR-1601 digital input modules.
Industrial Computing
-

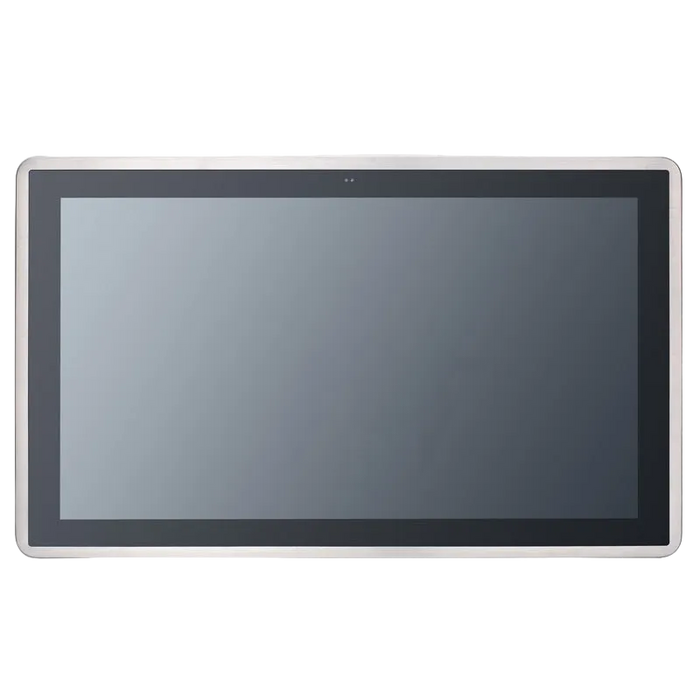

GOT821A-TGL-WCD Industrial Panel PC
21.5" FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer
Displays the network topology, device dashboards, power readings and I/O status, with a clear view of the complete demo.
-

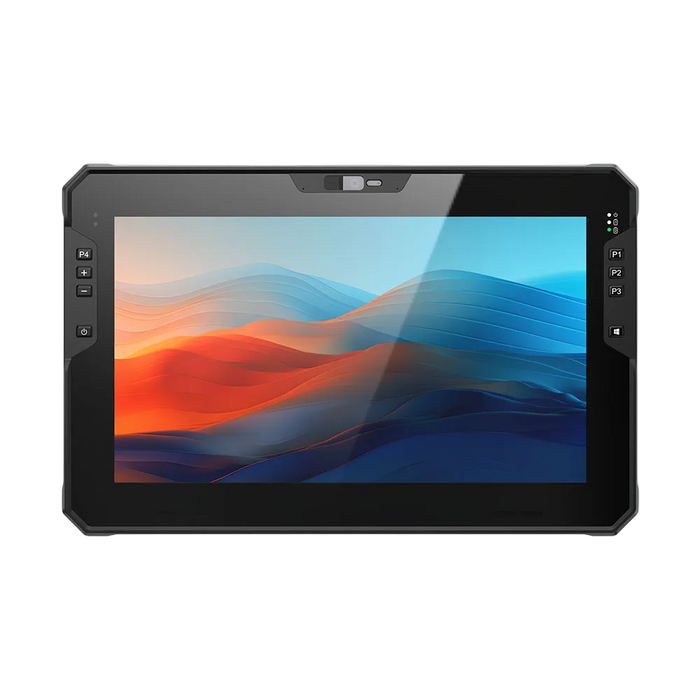

RTC-I116 Rugged Tablet
11.6″ Windows Rugged Tablet with Intel® Core™ i Processor
Displays the network topology, device dashboards, power readings and I/O status, providing a portable and interactive view of the complete demo that can be carried and used.
-

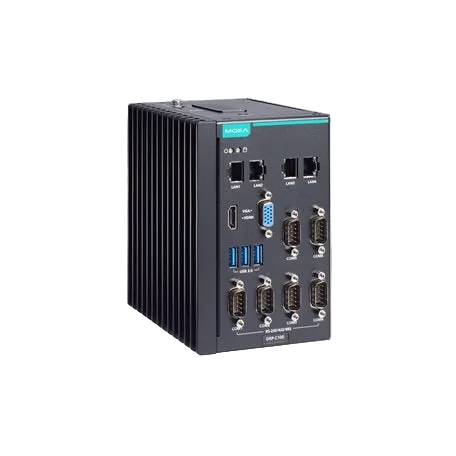

DRP-C100 Series Embedded Computer
Fanless Din-rail Embedded System with 11th Gen Intel Core processor and connectivity interface
Displays the network topology, device dashboards, power readings and I/O status, with a clear view of the demo.
